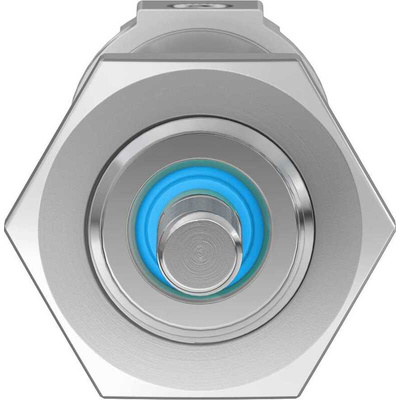

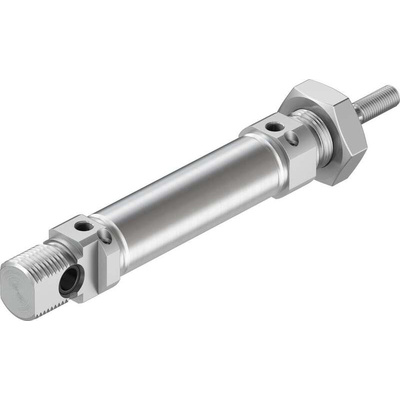

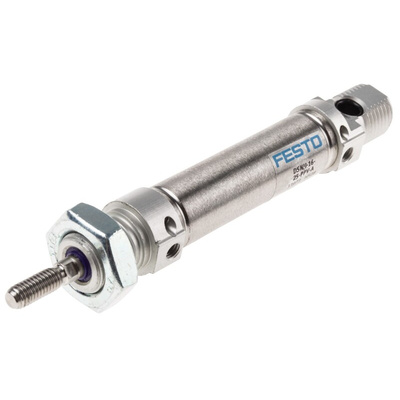

DSNU-16-25-PPV-A, Festo Pneumatic Cylinder - 33973, 16mm Bore, 25mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, 16mm Piston Diameter, 1 to 10 Bar Operating Pressure - DSNU-16-25-PPV-A

Up, down, left or right – keep your operation on a precise track with this pneumatic piston rod cylinder from Festo. It creates the linear motion needed for your industrial processes. As it's double-acting, compressed air drives the piston in both directions, delivering accuracy and steady power. Flexible cushioning at each end cuts out wear caused by impact and boosts the lifespan of the device. For further durability, it's made from high-alloy steel that stands up to corrosion.

Features & Benefits

• NBR and TPE-U(PU) seals for an airtight network and optimal performance
• Works at its best in a wide operating temperature range between -20°C and +80°C
• M6 piston thread is widely compatible with standard fittings
• Lightweight 89.9g unit won't strain your network.

Applications

• Automotive industry
• Medical imaging devices
• Military systems
• Aerospace applications

How big is this pneumatic piston rod cylinder?

The compact device has a length of 136mm with a 16mm bore diameter. This means it easily fits into tight spaces.

What pressure range can I use with the cylinder?

You can use this versatile product in applications with operating pressures between 1 and 10 bar.
