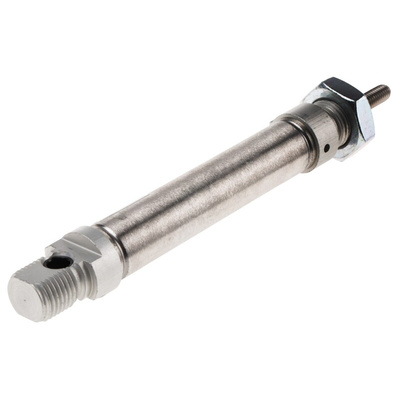

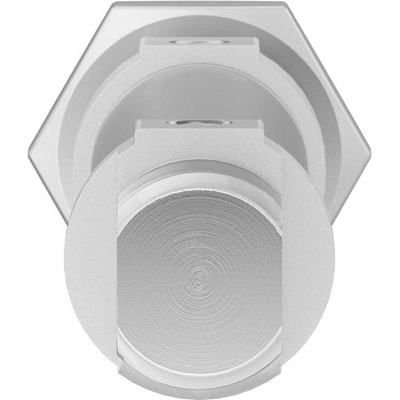

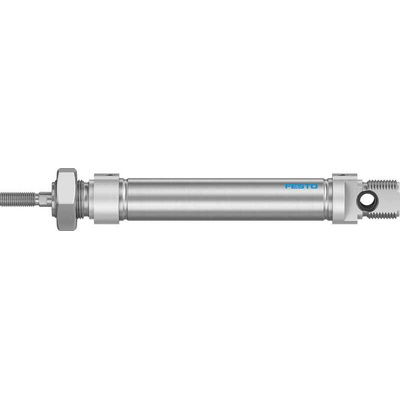

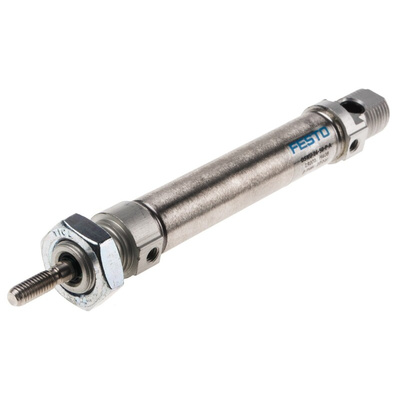

DSNU-16-50-P-A, Festo Pneumatic Piston Rod Cylinder - 19201, 16mm Bore, 50mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, 112.9g Weight, -20°C to +80°C Operating Temperature - DSNU-16-50-P-A

Looking to achieve linear movement in your machinery? Set things in motion with this pneumatic piston rod cylinder from Festo. This double-acting unit features two open holes that let air in and out, pushing and pulling the rod back and forth with reliable power. Impact and corrosion have nothing on this rod, thanks to its tough high-alloy steel body. To really close the deal, robust NBR and TPE-U(PU) seals keep the cylinder air-tight and leak-free. They also resist the oils and solvents found in challenging industrial settings.

Features & Benefits

• Wrought aluminium alloy cover resists mechanical wear
• Flexible cushioning rings and plates at both ends to help prevent piston damage
• Performs reliably in temperatures between -20°C and +80°C

Applications

• Marine engineering
• Oil and gas industry
• Conveyor systems

What's the operating pressure range of this pneumatic piston rod cylinder?

With an operating pressure range between 1 and 10 bar, the versatile device is safe to use in medium-duty settings.

Can I lubricate the cylinder?

Yes, you can lubricate this component, but it's important to note you must then continue to grease it throughout its service life.
