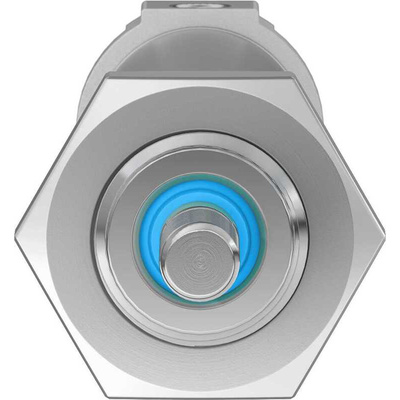

DSNU-16-50-PPS-A, Festo Pneumatic Cylinder - 559265, 16mm Bore, 50mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, 10 Bar Maximum Operating Pressure, 50mm Stroke - DSNU-16-50-PPS-A

Keep robotic and lifting equipment moving efficiently with this pneumatic cylinder from Festo. The double-acting mode of operation means it works on the advance and return strokes to move loads in two directions, such as up and down or forwards and backwards. Air cushioning at the ends of the cylinder keeps actions smooth, reducing wear and impact shock. As this cushioning is self-adjusting to cope with changes in speeds and loads, there's no need to stop to alter it manually, saving on installation and maintenance downtime.

• Mountable in any position for versatility
• Wide operating temperature range between -20°C and +80°C for use in harsh conditions
• Piston rod and cylinder barrel made from strong and corrosion-resistant high-alloy steel to maximise durability
• A weight of 112.9g means it's light enough to mount on robotic arms and suspended hoist systems

Applications

• Robotics
• Bottling and packaging
• Construction and agricultural equipment

What type of loads can this pneumatic cylinder handle?

This pneumatic cylinder is suitable for small and medium loads. It features a bore of 16mm and a stroke of 50mm to work with forces up to 120.6N.
