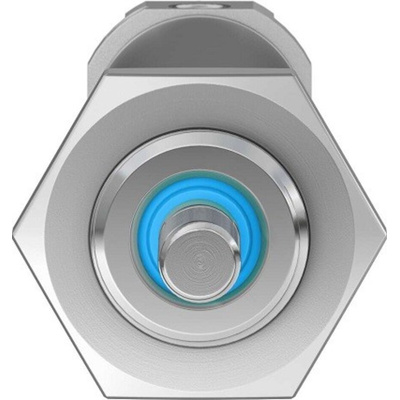

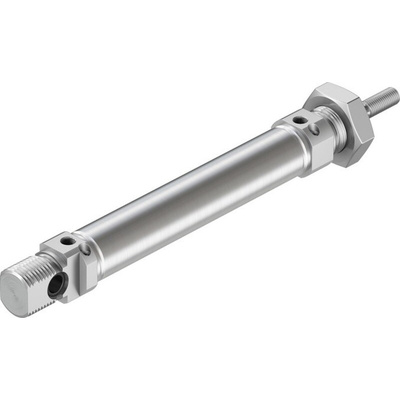

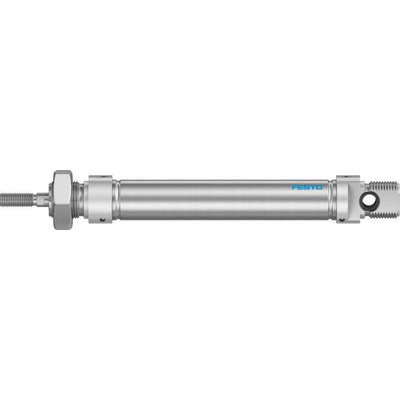

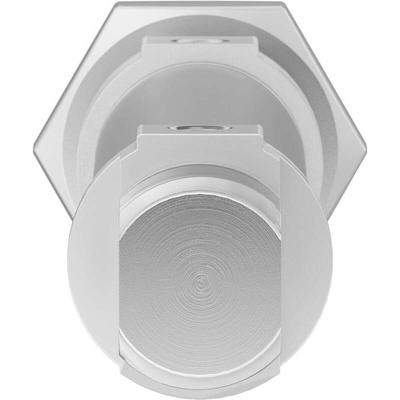

DSNU-16-60-PPV-A, Festo Pneumatic Cylinder - 1908271, 16mm Bore, 60mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, Adjustable End Position Cushioning, 1 to 10 Bar Operating Pressure Range - DSNU-16-60-PPV-A

Choose this pneumatic cylinder from Festo to keep your industrial robots on the move. Built-in cushioning slows down the cylinder's piston at the end of its stroke, which allows it to absorb the force of impacts. This helps to keep noise levels to a minimum and prevent damage from vibration. Don't worry if your installation area is small, as this cylinder's slim diameter of 20mm takes up minimal space. For convenience, you can mount it in any position.

Features & Benefits

• Adjustable cushioning to meet the needs of different applications
• Versatile, thanks to a broad operating pressure range between 1 and 10 bar
• Corrosion-resistant high alloy steel piston rod and barrel stand up to the demands of humid working environments
• Double-acting, so it provides precise control over linear movement in both directions

Applications

• Transportation
• Packaging facilities
• Mining and minerals processing
• Factory automation

Do I need to lubricate this pneumatic cylinder?

No. This cylinder's service-life lubrication means there's no need to regrease it, giving you the benefit of minimal maintenance. If your piston rod gets dirty, simply clean it with a soft cloth and a non-abrasive cleaning agent.

Festo DSNU/DSNUP/DSN/ESNU/ESN

Festo Pneumatic Cylinders Operating Manual

DSNU-16-60-PPV-A Specification Sheet

Instruction Sheet - DSNU(-S)

Catalogue - Automation Technology
