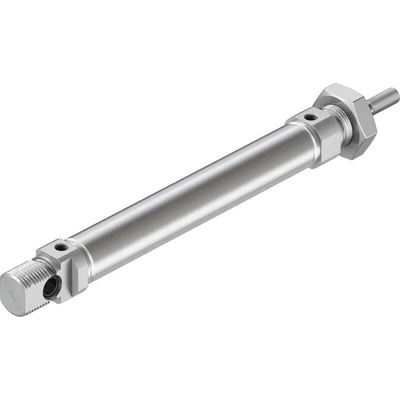

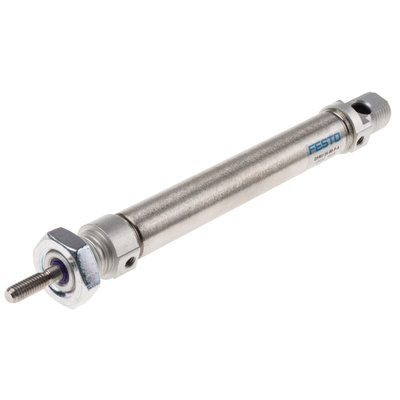

DSNU-16-80-P-A, Festo Pneumatic Cylinder - 19202, 16mm Bore, 80mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, Elastomer Cushioning, 1 to 10 Bar Operating Pressure Range - DSNU-16-80-P-A

Drive your machine components backwards and forwards using this pneumatic cylinder from Festo. Consisting of a piston rod housed in a barrel, it uses the force of compressed air to create linear motion. A double-acting design means it has two open ports that let air in and out to control the rod back and forth, removing the need for a spring-return mechanism. As this unit has M5 pneumatic and port connections, you'll find it a breeze to attach it to your existing setup without specialist tools.

Features & Benefits

• NBR seals stop oils and solvents getting in, ensuring a long service life
• Rugged high-alloy steel piston rod and barrel resist impacts and corrosion, so it's a durable choice
• Broad operating pressure range between 1 and 10 bar for safe use in low-pressure environments
• Tough wrought aluminium cover provides resistance to mechanical wear

Applications

• Food production and packaging
• Chemical plants
• Transport industry
• Construction equipment

What type of cushioning does this cylinder have?

This cylinder has flexible cushioning rings and plates at both ends that absorb impact from the piston, keeping it from wearing out.
