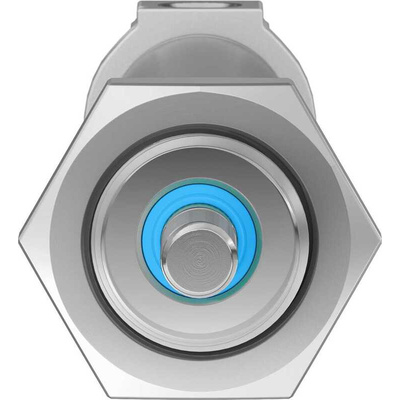

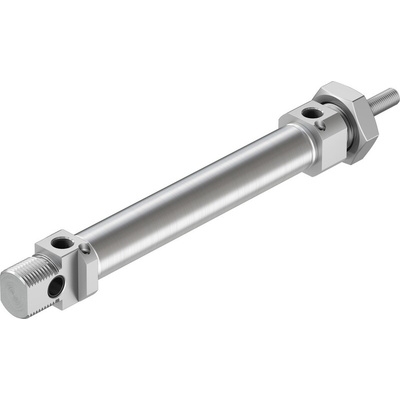

DSNU-20-100-PPV-A, Festo Pneumatic Cylinder - 19239, 20mm Bore, 100mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, 20mm Bore, 10 Bar Maximum Operating Pressure - DSNU-20-100-PPV-A

To turn compressed air into linear motion, reach for this pneumatic cylinder from Festo. Its double-acting design means it has two ports that let air in to drive the piston rod back and forth. As this rod's made from tough high-alloy steel, it stands up to corrosion and delivers reliable long-term performance. With an operating pressure range between 1 and 10 bar, this unit's an ideal choice for low-pressure applications. Robust NBR and TPE-U(PU) rings help seal the deal by stopping air from leaking out.

Features & Benefits

• Can be mounted in any position for flexible assembly
• Adjustable pneumatic cushioning at both ends help prevent piston wear
• Lubricated operation possible for reduced risk of friction-related damage

Applications

• Pharmaceutical industry
• Breweries
• Textile manufacturing
• Gas plants

How do I install this cylinder?

This cylinder has a G1/8 threaded connection, so you can attach it to your port without the need for specialist tools.

What's the operating temperature range of this cylinder?

With a broad operating temperature range between -20°C and +80°C, this cylinder doesn't break a sweat in challenging conditions.
