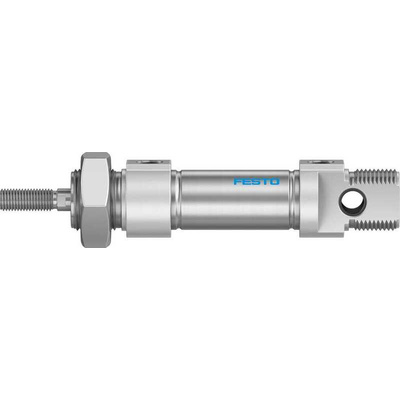

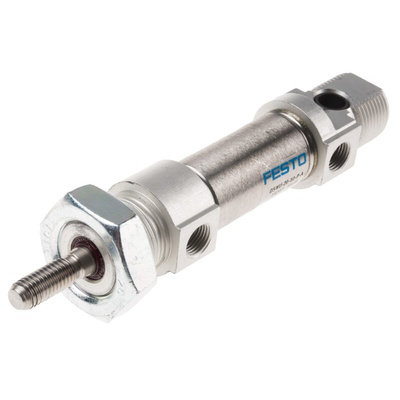

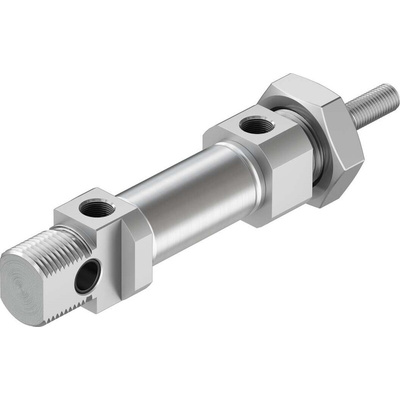

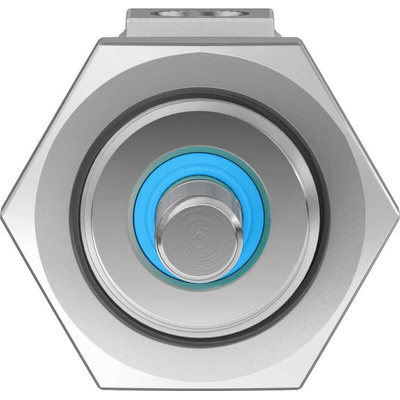

DSNU-20-10-P-A, Festo Pneumatic Cylinder - 19207, 20mm Bore, 10mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

1214746
Номер производителя: DSNU-20-10-P-AПроизводитель: Festo
Цена за шт.
20939.10 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

DSNU Series Roundline Cylinders - Flexible Cushioning

Festo DSNU series round pneumatic cylinders with flexible cushioning rings at both ends of the actuator barrel. Featuring a stainless steel piston rod within a 3 component system that provides excellent running performance and long service life. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod in a linear motion. An extensive range of accessories makes it possible to install the DSNU cylinders virtually anywhere.

Flexible Cushioning

The DSNU P type flexible cushioning pneumatic cylinders absorb energy directly via flexible cushioning rings which are integrated into the main piston. This energy absorbing method makes these cylinders ideal for small load and low speed applications.

Features and Benefits

Conforms to ISO 6432 providing standardised metric mounting dimensions
Stainless steel piston rod with threaded connector
Wide range of stroke length and bore size variants that can be configured to suit a broad range of applications.
Long service life
Double acting operation

How do I mount the pneumatic cylinder?

The DSNU series pneumatic round actuators conform to ISO 6432 standards allowing them to be mounted in any position to suit the required application. The ISO 6432 standard establishes metric mounting dimensions for cylinders providing interchangeability of commonly used hydraulic and pneumatic cylinders. Optional mounting accessories provide further flexibility allowing the cylinder to be attached with a swivel bracket for free movement, foot mounted for support under high loads or combined with other actuators to give a wider range of movement.

Festo Pneumatic Cylinder, 1 to 10 Bar Operating Pressure Range, G1/8 Port Connection - DSNU-20-10-P-A

Move productivity up the line with this pneumatic cylinder from Festo. It creates the linear movement needed to position, clamp or stop objects, keeping the ball rolling in your industrial operations. A short stroke of 10mm delivers precision to boost reliability. Plus, the unit's double-acting design means it uses air to drive both the thrust and return stroke, to boost efficiency. At only 142mm long, this space-saver takes up little room in your installation. It comes with robust NBR seals to keep it reliably airtight.

Features & Benefits

• G1/8 port connection for broad compatibility
• Safe to use in tough environments, thanks to an operating temperature range between -20°C and +80°C
• Wide operating pressure range of 1 to 10 bar for versatile use
• Light weight of 194g puts minimal strain on your system

Applications

• Factory automation
• Automotive manufacturing
• Medical imaging systems
• Aerospace industry

Can I lubricate this pneumatic cylinder?

Yes, lubricated operation is possible to prevent friction, but if you lubricate it once, you must always do so.

Can I use the cylinder in humid conditions?

Yes, it's made from rust-resistant high-alloy stainless steel for durability in settings where moisture is likely.

Техническая спецификация
pdfFesto DSNU/DSNUP/DSN/ESNU/ESN
pdfFesto Pneumatic Cylinders Operating Manual
pdfDSNU-20-10-P-A Specification Sheet
pdfBrochure - Simply Part of The Solution
pdfInstruction Sheet - DSNU( - S) Round Cylinder
Вес:
194гр
Давление - максимальное рабочее:
10 бар
Действие:
Double
Диаметр:
27мм
Длина:
142мм
Модель р:
19207
Отверстие:
20мм
Пневматическое соединение:
G 1/8
Производитель - серия:
DSNU
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-20°C
Размеры:
27 x 142mm
Род резьбы поршневого стержня:
Male
Стандарт ISO:
ISO 6432
Стандарт VDMA:
VDMA24364
Тип демпфирования:
Эластомер
Ход:
10мм
