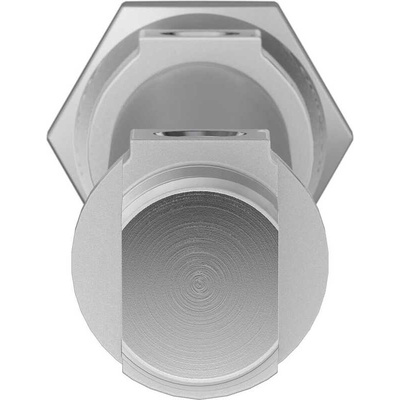

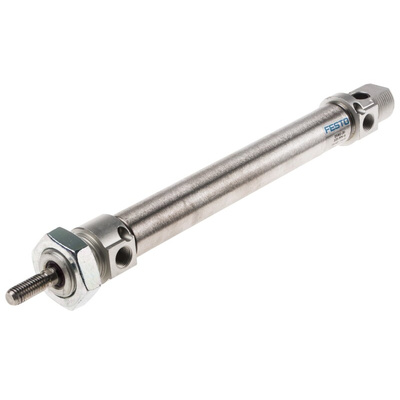

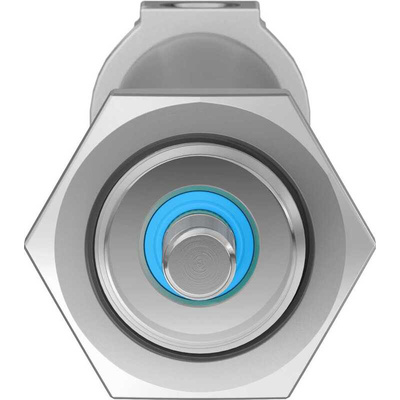

DSNU-20-125-PPV-A, Festo Pneumatic Cylinder - 19240, 20mm Bore, 125mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, 1 to 10 Bar Operating Pressure Range, G1/8 Pneumatic Connection - DSNU-20-125-PPV-A

Get your smaller components moving with this pneumatic cylinder from Festo. It's a double-acting option that uses air to drive the piston both ways and give you precise control over forward and backward motion. With a 125mm stroke length, it's suitable for material handling tasks. Pairing the unit with an existing compressed air supply is no problem, thanks to its standard G1/8 connection. Adjustable cushioning at each end of the cylinder cuts out the risk of impact damage to your equipment.

Features & Benefits

• NBR seals prevent leaks to maintain system pressure
• Works with either clean or lubricated compressed air supplies for versatility
• Durable steel alloy body stands up to wear and tear, for a long service life
• Handles operating temperatures between -20°C and +80°C, so functions dependably in tough industrial settings

Applications

• Transportation equipment
• Industrial automation
• Packing plants

Can I use this pneumatic cylinder in wet conditions?

Yes, this unit's corrosion-resistant aluminium alloy casing means it's a safe bet for working in damp settings.

How can I track the stroke position of this product?

You can attach a proximity sensor (121-5836) to this cylinder if you need close movement monitoring.

Festo DSNU/DSNUP/DSN/ESNU/ESN

Festo Pneumatic Cylinders Operating Manual

DSNU-20-125-PPV-A Specification Sheet

Instruction Sheet - DSNU(-S) Round Cylinder

Brochure - Simply Part of The Solution
