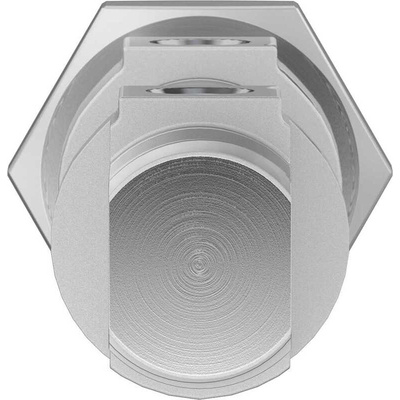

DSNU-20-20-PPV-A, Festo Pneumatic Cylinder - 1908291, 20mm Bore, 20mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, 1 to 10 Bar Operating Pressure Range, 0.2J Impact Energy in End Positions - DSNU-20-20-PPV-A

Want to move loads in your automated system with ease and accuracy? Trust the task to this pneumatic cylinder from Festo. Its forward and backward movements are controlled by compressed air alternately pushing through its two ports. A 20mm stroke length means this piece of kit fits the bill for short-span operations like material rejection in production lines. Thanks to a durable wrought aluminium alloy body, it withstands the elements to deliver long-lasting performance in rugged settings. Use it with a proximity sensor for operational efficiency in your automated setup.

Features & Benefits

• PPV cushioning absorbs the piston's impact energy to reduce vibration and support a prolonged lifespan
• NBR seals keep contaminants out and maintain an airtight system for optimal performance
• Wide operating pressure range between 1 and 10 bar makes it suitable for use in light-duty to heavy-duty applications

Applications

• Robotics and automation systems
• Bottle filling and labelling machines
• Medical equipment

What position should I mount this cylinder in?

You can mount this versatile piece of kit in any position that meets the needs of your setup.
