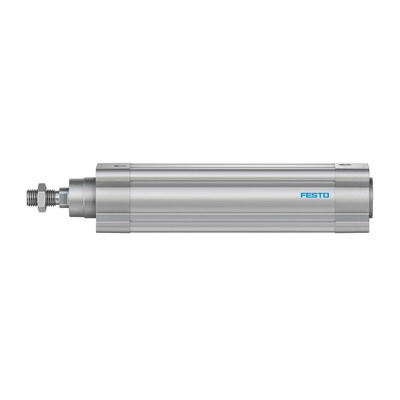

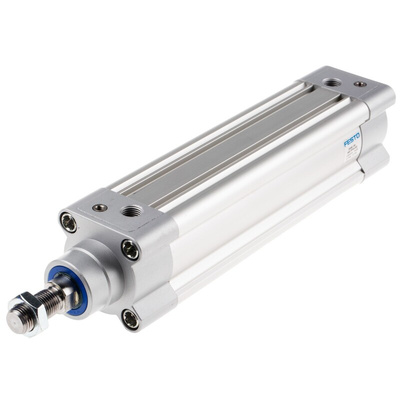

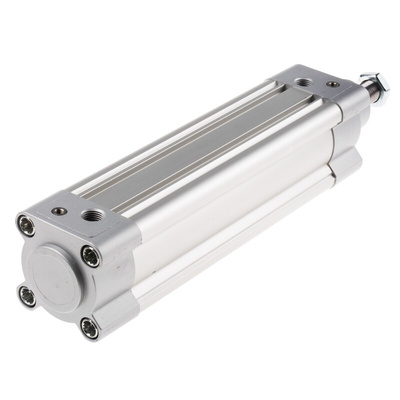

DSBC-50-160-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1366954, 50mm Bore, 160mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

DSBC Series Profile Cylinders - Adjustable Pneumatic Cushioning

Festo DSBC series pneumatic cylinders with adjustable pneumatic cushioning at both ends of the actuator barrel. Featuring a high-alloy steel piston rod provides excellent running performance, low overall weight and long service life. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod in a linear motion. Magnetic piston rods allow contactless position detection via a proximity sensor mounted in slots along the cylinder body.

Adjustable Pneumatic Cushioning

The DSBC PPV type adjustable cushioning pneumatic cylinders are equipped with a special cushioning piston as an extension to the main piston. This pneumatic cushioning builds up an air cushion to absorb energy in the end positions, building up and exhausting air in a targeted fashion.. This energy absorbing method makes these cylinders ideal for medium to heavy loads and high speed applications.

Features and Benefits

Corresponds to ISO 15552 standard
Slots for flush mounting proximity sensors
Low friction design allowing for continuous operation
Adjustable end cushioning helping to reduce noise and vibration
High-alloy steel piston rod with threaded connector
Wide range of stroke length and bore size variants that can be configured to suit a broad range of applications
Double acting operation

How do I mount the pneumatic actuator?

The DSBC series pneumatic round actuators conform to ISO 15552 standards allowing them to be mounted in any position to suit the required application. The ISO 15552 standard establishes metric mounting dimensions for cylinders providing interchangeability of commonly used hydraulic and pneumatic cylinders. Optional mounting accessories provide further flexibility allowing the cylinder to be attached with a swivel bracket for free movement, foot mounted for support under high loads or combined with other actuators to give a wider range of movement.

Festo Pneumatic Piston Rod Cylinder, 0.4 to 12 Bar Operating Pressure Range, M16x1.5 Piston Rod Thread - DSBC-50-160-PPVA-N3

To get your automated system on the move, reach for this pneumatic piston rod cylinder from Festo. It's a double-acting unit with a stroke length of 160mm, so it's ideal for positioning and clamping applications. Adjustable cushioning at each end helps cut noise and reduce the risk of damage from vibrations or repeated impact. The corrosion-resistant aluminium alloy housing withstands the challenges of wet work areas for long-lasting durability. You can use it either with clean or lubricated compressed air, so it's a versatile piece of kit.

Features & Benefits

• Industry-standard G1/4 port and pneumatic connections for wide compatibility with existing equipment
• Measures 337.8 (L) x 64 (W) x 64mm (H) to take up little space in your setup
• Generates a force of up to 1,178N on the outstroke, so can cope with large loads

Applications

• Process control
• Packing plants
• Semiconductor manufacturing

What's the difference between single-acting and double-acting cylinders?

Single-acting cylinders extend by taking in air and retract using an automatic spring mechanism. Double-acting cylinders like this one use air to push and pull, generating accurate and controlled movement in two directions.
