DSBC-50-200-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1366955, 50mm Bore, 200mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

DSBC Series Profile Cylinders - Adjustable Pneumatic Cushioning

Festo DSBC series pneumatic cylinders with adjustable pneumatic cushioning at both ends of the actuator barrel. Featuring a high-alloy steel piston rod provides excellent running performance, low overall weight and long service life. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod in a linear motion. Magnetic piston rods allow contactless position detection via a proximity sensor mounted in slots along the cylinder body.

Adjustable Pneumatic Cushioning

The DSBC PPV type adjustable cushioning pneumatic cylinders are equipped with a special cushioning piston as an extension to the main piston. This pneumatic cushioning builds up an air cushion to absorb energy in the end positions, building up and exhausting air in a targeted fashion.. This energy absorbing method makes these cylinders ideal for medium to heavy loads and high speed applications.

Features and Benefits

Corresponds to ISO 15552 standard
Slots for flush mounting proximity sensors
Low friction design allowing for continuous operation
Adjustable end cushioning helping to reduce noise and vibration
High-alloy steel piston rod with threaded connector
Wide range of stroke length and bore size variants that can be configured to suit a broad range of applications
Double acting operation

How do I mount the pneumatic actuator?

The DSBC series pneumatic round actuators conform to ISO 15552 standards allowing them to be mounted in any position to suit the required application. The ISO 15552 standard establishes metric mounting dimensions for cylinders providing interchangeability of commonly used hydraulic and pneumatic cylinders. Optional mounting accessories provide further flexibility allowing the cylinder to be attached with a swivel bracket for free movement, foot mounted for support under high loads or combined with other actuators to give a wider range of movement.

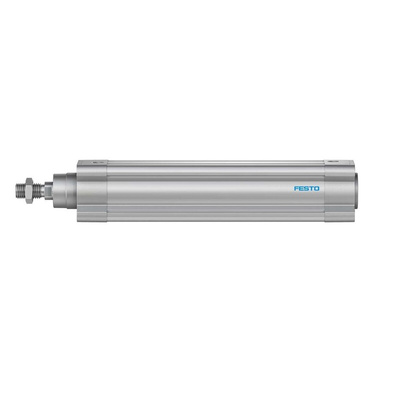

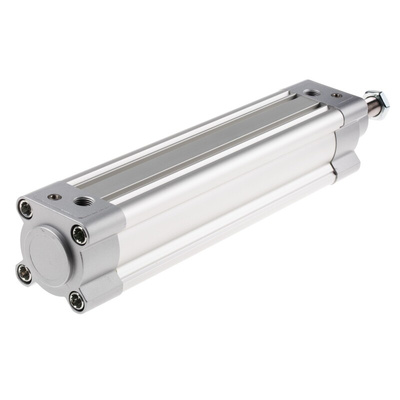

Festo Pneumatic Piston Rod Cylinder, Male Thread, 1.2kg Weight - DSBC-50-200-PPVA-N3

Get your automated system pumping with this pneumatic piston rod cylinder from Festo. Its double-acting design means air drives in through both ends, generating consistent linear motion in two directions. With a stroke capacity of 200mm, this unit creates enough force to power demanding applications. As it functions well in a pressure range between 0.4 and 12 bar, it's a versatile piece of kit. Air cushioning technology softens the impact of the piston movement at the endpoints, cutting down on wear and tear to ensure a long service life.

Features & Benefits

• Compact dimensions of 377.8 (L) x 64 (W) x 64mm (H), so it fits into narrow spaces
• G1/4 thread connection for wide compatibility with standard equipment
• TPE-U seals resist corrosion and maintain air pressure to keep your system leak-free
• Aluminium alloy barrel withstands the impacts and abrasion you'd expect in challenging conditions

Applications

• Pharmaceutical production
• Automotive manufacturing
• Medical equipment

Does this product function in hot work areas?

Yes. This cylinder performs reliably in a temperature range between -20°C and +80°C, so it's a good choice for hot settings.
