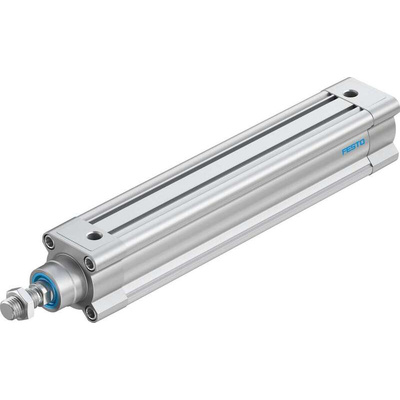

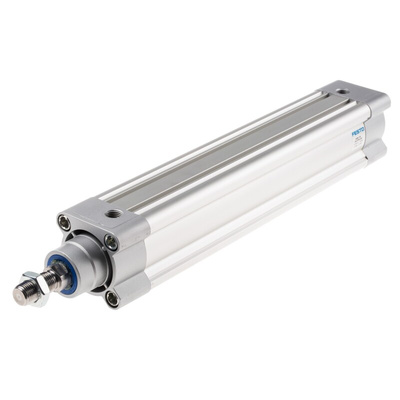

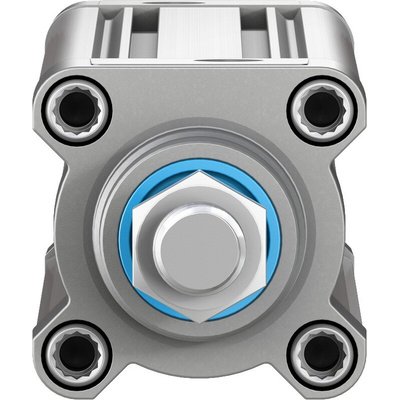

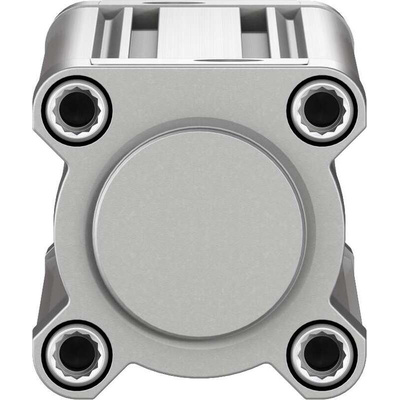

DSBC-50-250-PPSA-N3, Festo Pneumatic Piston Rod Cylinder - 1376311, 50mm Bore, 250mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, G1/4 Pneumatic Connection, Wrought Aluminium Alloy Barrel - DSBC-50-250-PPSA-N3

Need help shifting loads in your industrial system? Trust this pneumatic piston rod cylinder from Festo to get things moving. It's a double-acting unit, which means that its forward and backward movements are controlled by compressed air going through its two air ports. The barrel is made from wrought aluminium alloy that withstands corrosion and impact, so you can count on it for long-term performance. Slots on the device let you pair it easily with a proximity sensor (121-5825) when you need precise position detection. Thanks to its 250mm stroke length, this is the cylinder to install for repetitive jobs where accuracy is key.

Features & Benefits

• Standard M16 threaded port for simple and time-efficient mounting
• Light weight of 1.2kg for easy handling during installation
• Integrated TPE-U(PU) seals stop leakages and shut out contaminants to ensure optimal operation
• Self-adjusting PPS cushioning on the piston ends reduces noise and vibration

Applications

• Automotive industry
• Process and packaging plants
• Robotics systems

What temperatures can this cylinder work in?

This unit withstands operating temperatures between -20°C and +80°C, making it the right choice for demanding conditions.
