DSBC-50-250-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1366956, 50mm Bore, 250mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

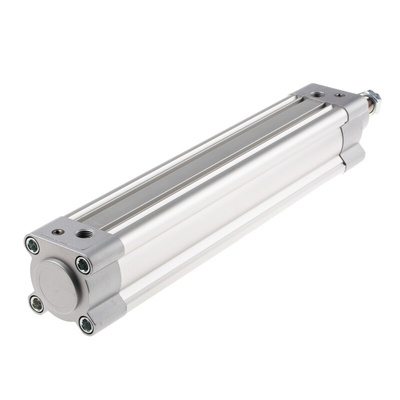

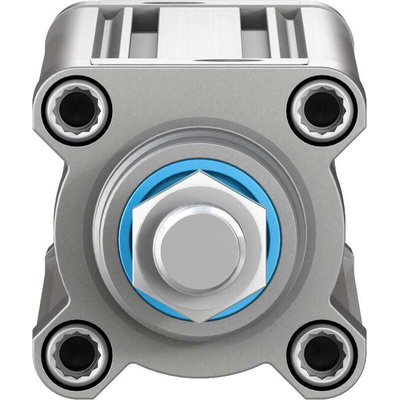

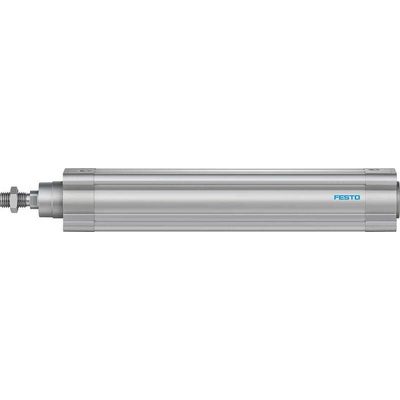

Festo Pneumatic Piston Rod Cylinder, G1/4 Thread, Wrought Aluminium Alloy Housing - DSBC-50-250-PPVA-N3

Need a hand moving loads in different directions? Choose this pneumatic piston rod cylinder from Festo. It's a double-acting device, which means that it has air ports at each end that open and close alternately to move its piston forward and backwards. This makes it the right choice for operations like opening and closing machine doors. Thanks to durable wrought aluminium alloy housing, this piece of kit holds its own against impact and corrosion, so it's a reliable workmate in tough settings.

Features & Benefits

• Wide operating pressure range of 0.4 to 12 bar for versatile use in light-duty to heavy-duty applications
• Adjustable PPV cushioning at both ends reduces noise and vibration for optimal performance
• Can be assembled in any position for flexibility
• Integrated TPE-U(PU) seals block out dust and contaminants, ensuring a long service life

Applications

• Material handling equipment
• Assembly lines
• Airport terminals

What's the temperature tolerance of this piston rod cylinder?

This cylinder withstands between -20°C and +80°C of operational temperature, making it a reliable choice for demanding conditions.

How much force does this cylinder deliver?

At 6 bar operating pressure, this unit packs an advance stroke force of 1178N and a return stroke of 990N, so it's just the thing for heavy-duty operations.
