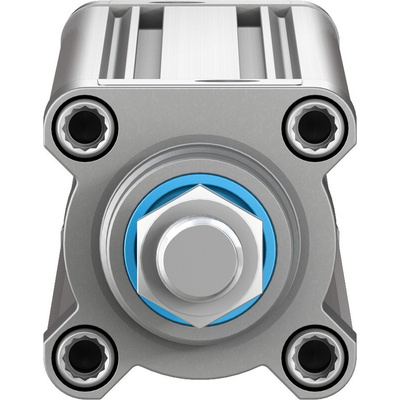

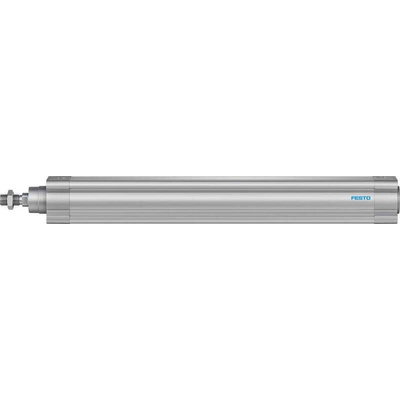

DSBC-50-400-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1366958, 50mm Bore, 400mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, Male Thread, G1/4 Port Connection - DSBC-50-400-PPVA-N3

To harness the power of compressed air and get things moving, turn to this pneumatic piston rod cylinder from Festo. The double-acting unit has a port at each end to let air in and out, moving the piston rod back and forth. Impact and corrosion won't slow the rod down, thanks to its rugged high-alloy steel body. With adjustable cushioning at both ends to soften the blows from the piston, you can trust it won't wear out easily. A wide operating temperature range between -20°C and +80°C means this cylinder gets the job done, even in harsh conditions.

• Designed to deliver low levels of friction, making continuous operation possible
• TPE-U seals are thermally resistant for durability
• Pre-cut slots for convenient mounting of proximity sensors

Applications

• Industrial presses
• Chemical plants
• Automotive engineering
• Production lines

What's the operating pressure range of this cylinder?

With an operating pressure range between 0.4 and 12 bar, you can use this cylinder in your low-pressure to medium-pressure systems.

How do I mount this cylinder?

To mount the cylinder, screw its G1/4 threaded connection to a port in your pneumatic system. For flexibility in your setup, you can mount it in any position.
