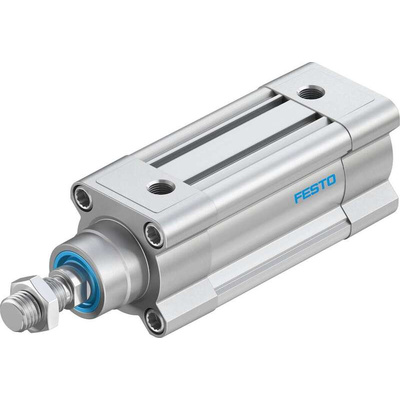

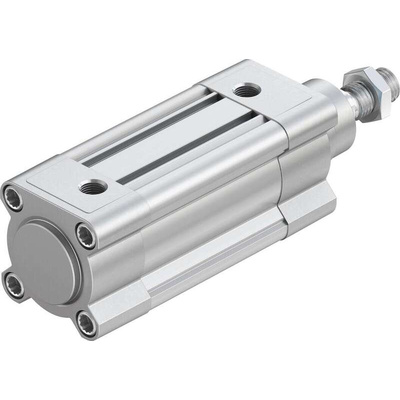

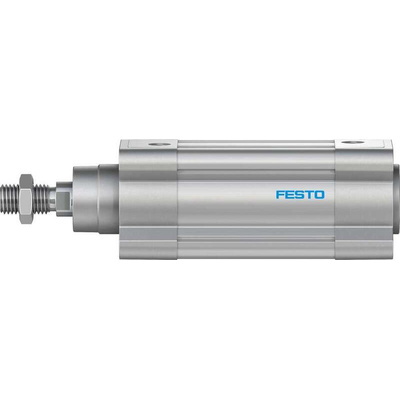

DSBC-50-50-PPSA-N3, Festo Pneumatic Piston Rod Cylinder - 1376305, 50mm Bore, 50mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, 1.2kg Weight, G1/4 Pneumatic Connection - DSBC-50-50-PPSA-N3

Need reliable repeated movement in your industrial equipment? Count on this piston rod cylinder from Festo to do the heavy lifting. It uses compressed air alternating between its two ports to push its piston backwards and forwards, taking care of repetitive tasks on a production line. Thanks to a stroke length of 50mm, it's the right choice for short-range operations that need control and precision. PPS cushioning on both piston ends absorbs shock, preventing noise and vibration for optimal performance.

Features & Benefits

• Safe to use in challenging settings, thanks to an operating temperature range between -20°C and +80°C
• Wrought aluminium alloy barrel resists corrosion and impact, making it fit for harsh environments
• Slots on the cylinder body let you mount a proximity sensor for automated operation
• TPE-U(PU) seals keep contaminants out and prevent leakages to ensure smooth operation
• Works reliably in a wide operating pressure range between 0.4 and 12 bar

Applications

• Robotics systems
• Packaging facilities
• Marine engineering

What operating force does this piston rod cylinder deliver?

At 6 bar operating pressure, this unit delivers an advance force of 1178N and return force of 990N, so you can rely on it to handle heavy-duty applications.
