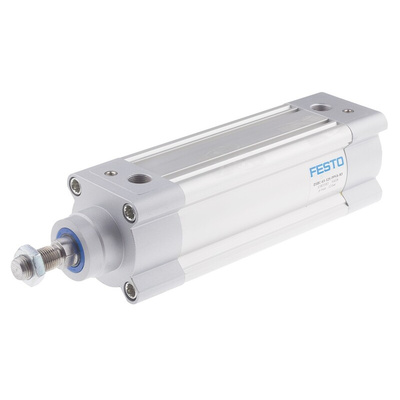

DSBC-63-125-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1383583, 63mm Bore, 125mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, Adjustable Cushioning, 0.4 to 12 Bar Operating Pressure Range - DSBC-63-125-PPVA-N3

Harness the power of compressed air to produce linear motion using this pneumatic piston rod cylinder from Festo. This double-acting unit features two open ports through which air flows in and out, causing the piston rod to move back and forth. Adjustable PPV cushioning on both ends softens the blow of the rod's movement, preventing wear and keeping noise to a minimum. Thanks to a wide operating pressure range between 0.4 and 12 bar, this cylinder stands up to the rigours of low and high-pressure applications.

Features & Benefits

• Piston rod is made of high-alloy steel for resistance to impact and corrosion
• Threaded end makes it a cinch to install without tools
• Performs reliably in harsh conditions, thanks to a broad operating temperature range between -20°C and +80°C
• Stroke length of 125mm for movement across short distances
• Wrought aluminium alloy barrel construction holds up to wear

Applications

• Scientific laboratories
• Automotive manufacturing
• Packaging facilities

Can I use this cylinder with lubricated compressed air?

Yes, this cylinder is compatible with both non-lubricated and lubricated compressed air for versatility.
