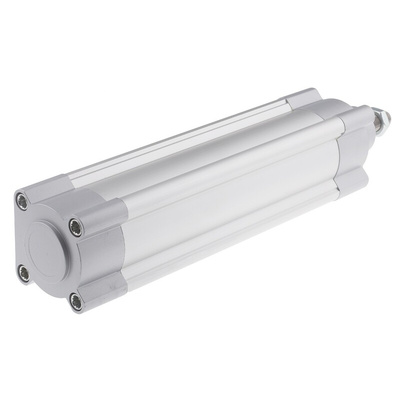

DSBC-63-200-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1383585, 63mm Bore, 200mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, M16 Piston Thread, 1.3J Impact Energy at End Positions - DSBC-63-200-PPVA-N3

Get loads moving in the right direction with this pneumatic piston rod cylinder from Festo. As a double-acting unit, the forward and backward thrusts of its piston are controlled by compressed air entering through its two end ports. With a stroke length of 200mm, this unit is the right choice for short-range operations. Its die-cast aluminium housing stands up to impact and corrosion, making it fit for use in harsh industrial environments. Pneumatic cushioning on both ends absorbs the shock of the piston's movement, which reduces noise and vibration to boost performance.

Features & Benefits

• Operating temperature range between -20°C and +80°C means it's safe to use in demanding conditions
• Standard G3/8 threaded port for simple and time-efficient mounting
• Integrated TPE-U(PU) seals block leakages and keep out contaminants to maintain pressure and keep media clean
• Advance stroke of 1870N and return stroke of 1682N for heavy-duty use

Applications

• Process and packaging equipment
• Aerospace engineering
• Pharmaceutical production

How much does this cylinder weigh?

This unit weighs just 1.74kg, so it's easy to handle during installation and doesn't put much strain on your equipment.
