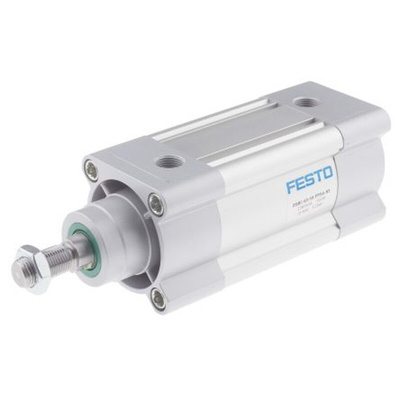

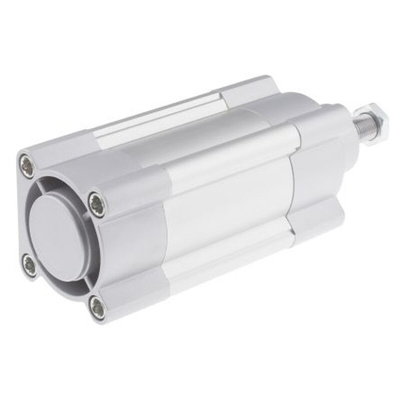

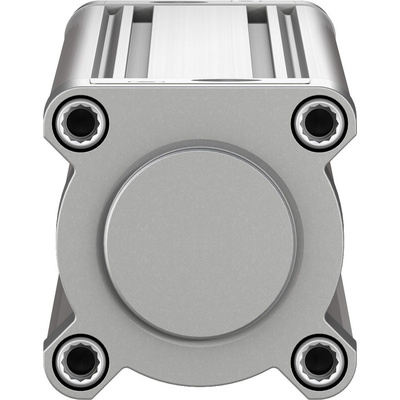

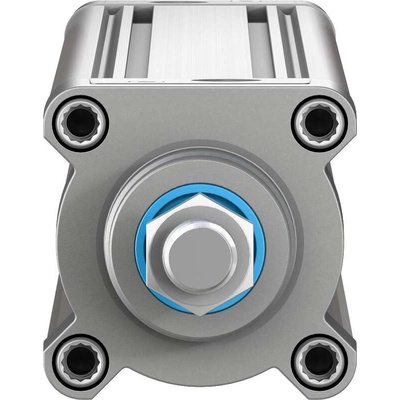

DSBC-63-500-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1383589, 63mm Bore, 500mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, 0.4 to 12 Bar Operating Pressure, High Alloy Steel Piston Rod - DSBC-63-500-PPVA-N3

If you're positioning workpieces and need to quickly ramp up speed, turn to this pneumatic piston rod cylinder from Festo. Thanks to self-adjusting end-position cushioning, it quickly reacts to load and speed changes without manual intervention. The cushioning also saves you time during commissioning. A wide operating pressure range of 0.4 to 12 bar makes it a versatile option. For quick and easy sensor assembly, it's supplied with convenient mounting slots. Thanks to a short stroke of 250mm, you can use this cylinder in areas where space is tight.

• Hardwearing, die-cast aluminium-coated cover resists corrosion, making it suitable for use in humid locations
• Can be assembled in any position for convenient installation
• Lubricated for life, so maintenance is minimal
• Thermoplastic seals maintain their dimensional stability, even under high pressure

Applications

• Process automation
• Food packaging
• Earthmoving and construction equipment
• Automotive manufacturing

Does this pneumatic cylinder have a metal piston rod?

Yes, the piston rod is made from high alloy steel that withstands wear and abrasion. This assures you of an extended service life in harsh environments.

Festo DSBC

Festo Pneumatic Cylinders Operating Manual

DSBC-63-500-PPVA-N3 Specification Sheet

Brochure - The Future of Standard Cylinders
