DSBC-63-50-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1383580, 63mm Bore, 50mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

DSBC Series Profile Cylinders - Adjustable Pneumatic Cushioning

Festo DSBC series pneumatic cylinders with adjustable pneumatic cushioning at both ends of the actuator barrel. Featuring a high-alloy steel piston rod provides excellent running performance, low overall weight and long service life. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod in a linear motion. Magnetic piston rods allow contactless position detection via a proximity sensor mounted in slots along the cylinder body.

Adjustable Pneumatic Cushioning

The DSBC PPV type adjustable cushioning pneumatic cylinders are equipped with a special cushioning piston as an extension to the main piston. This pneumatic cushioning builds up an air cushion to absorb energy in the end positions, building up and exhausting air in a targeted fashion.. This energy absorbing method makes these cylinders ideal for medium to heavy loads and high speed applications.

Features and Benefits

Corresponds to ISO 15552 standard
Slots for flush mounting proximity sensors
Low friction design allowing for continuous operation
Adjustable end cushioning helping to reduce noise and vibration
High-alloy steel piston rod with threaded connector
Wide range of stroke length and bore size variants that can be configured to suit a broad range of applications
Double acting operation

How do I mount the pneumatic actuator?

The DSBC series pneumatic round actuators conform to ISO 15552 standards allowing them to be mounted in any position to suit the required application. The ISO 15552 standard establishes metric mounting dimensions for cylinders providing interchangeability of commonly used hydraulic and pneumatic cylinders. Optional mounting accessories provide further flexibility allowing the cylinder to be attached with a swivel bracket for free movement, foot mounted for support under high loads or combined with other actuators to give a wider range of movement.

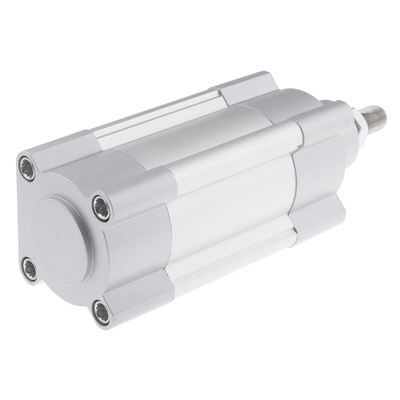

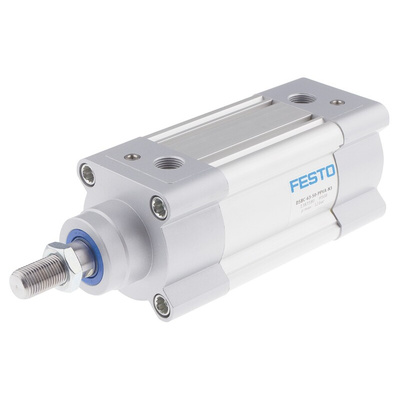

Festo Pneumatic Piston Rod Cylinder, G3/8 Pneumatic Connection, 63mm Bore - DSBC-63-50-PPVA-N3

Keep your compressed air operation on the straight and narrow with this pneumatic piston rod cylinder from Festo. It's a hardy device, thanks to aluminium die-cast housing that stands up to repeated use without suffering damage. Robust TPE-U seals keep pressure in your system constant and withstand the effects of corrosive chemicals, so you get top-notch performance in the long term. Adjustable PPV cushioning is on hand to absorb impact from the rod, making this cylinder an ideal choice for high-speed jobs. It handles the demands of harsh settings without breaking sweat, thanks to a broad operating temperature range between -20°C and +80°C.

Features & Benefits

• Compact dimensions of 243.1 (L) x 75 (W) x 75mm (H) suit use in confined setups
• Double-acting type offers two-way control for convenience
• Inbuilt slots to accommodate a proximity sensor, enabling precision positioning
• Powerful outstroke delivers force up to 1870N, ideal for demanding applications

Applications

• Factory automation
• Pulp and paper mills
• Agricultural equipment

How much does this component weigh?

This pneumatic piston rod cylinder weighs only 1.7kg, so it doesn't add unnecessary load to your setup.
