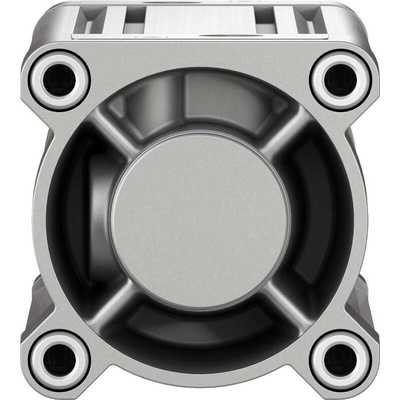

DSBC-80-200-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1383340, 80mm Bore, 200mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, 200mm Stroke, G3/8 Threaded Port - DSBC-80-200-PPVA-N3

Easily move heavy loads in your industrial setup with this pneumatic piston rod cylinder from Festo. It's a double-acting unit, which means it has compressed air driving its piston in both directions for extension and retraction. This makes it the right choice for applications like opening and closing doors. The unit stays on shift in rugged industrial environments thanks to its coated die-cast aluminium housing, which provides reliable resistance to corrosion and impact. You don't need any complex tools to set it up, as its standard G3/8 threaded port makes creating pneumatic connections quick and easy.

• Comes with slots for flush mounting of proximity sensors, enabling automated operation
• Broad operating temperature range between -20°C to +80°C for use in demanding applications
• Integrated TPE-U(PU) seals block out dust and contaminants, ensuring a long service life
• Adjustable PPV cushioning at both ends reduces noise and vibration for improved performance

Applications

• Oil and gas plants
• Military equipment
• Robotics and automation systems

What's the operating pressure range of this cylinder?

This unit performs at its best in a pressure range between 0.4 and 12 bar, making it a versatile workmate.
