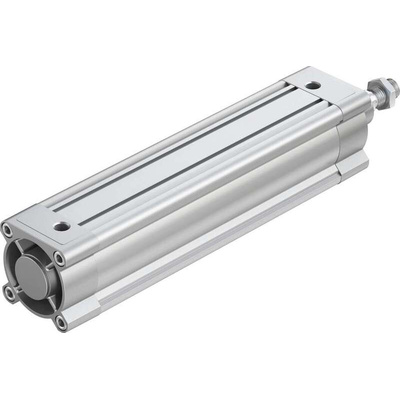

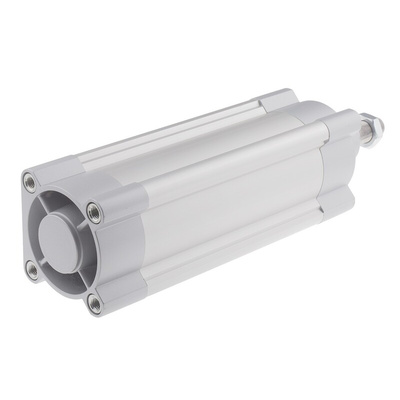

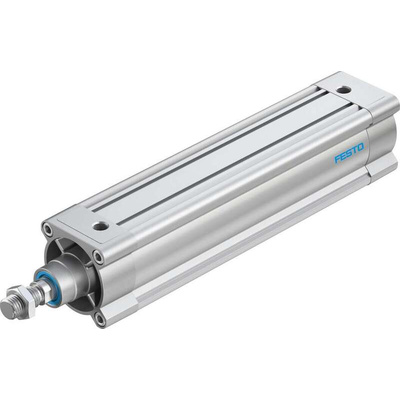

DSBC-80-300-PPSA-N3, Festo Pneumatic Piston Rod Cylinder - 2126641, 80mm Bore, 300mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, G3/8 Pneumatic Connection, 0.4 to 12 Bar Operating Pressure - DSBC-80-300-PPSA-N3

Seeking stable linear machine movements? Get your setup on the straight and narrow with this Festo pneumatic piston rod cylinder. It uses compressed air at pressures between 0.4 and 12 bar to move its 80mm diameter piston rod. This gives you a stroke of up to 300mm, making it handy for a whole host of industrial automation applications. You'll find it works in either direction thanks to its adaptable double-acting cylinder. Self-adjusting cushioning at both ends reduces the risk of internal damage or dislodging, making this a durable option you can count on.

Features & Benefits

• Connects securely using an internal M20x1.5 thread, so you get stable mounting for your piston rod cylinder
• Offers position detection thanks to an internal proximity sensor
• Versatile product suits any mounting position for flexibility
• Broad operating temperature range from -20°C to +80°C lets you use it in challenging settings

Applications

• Factory automation
• Transportation
• Packaging machinery

What size pneumatic connection does this piston rod cylinder have?

This cylinder's G3/8 pneumatic connection is an industry-standard size, so you'll find it a doddle to connect up to your pressurised lines.
