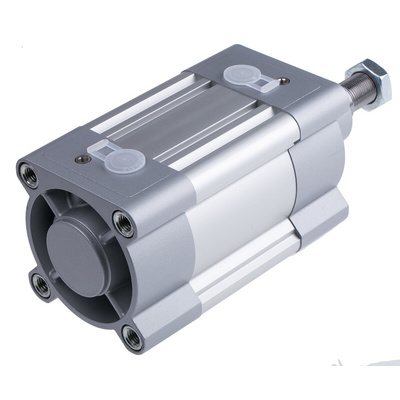

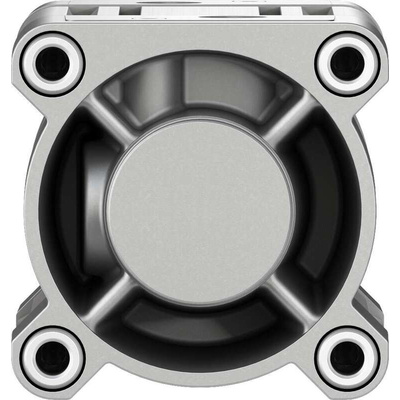

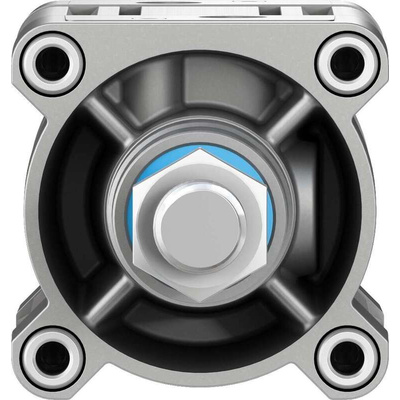

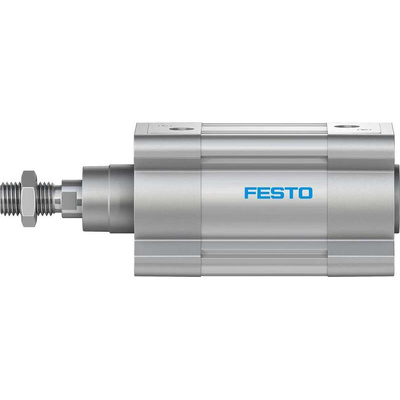

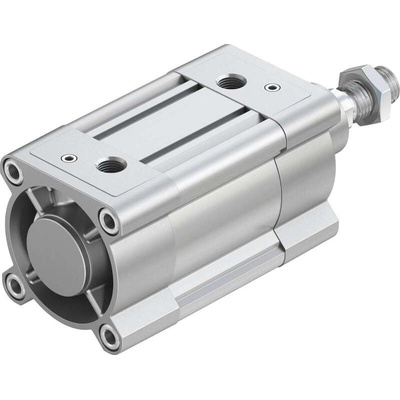

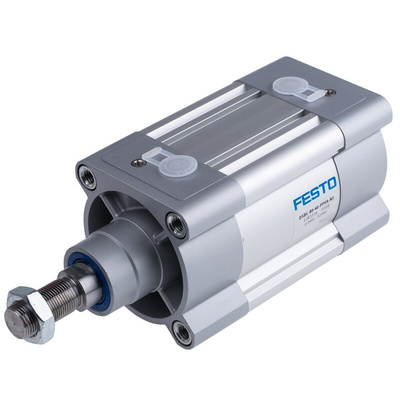

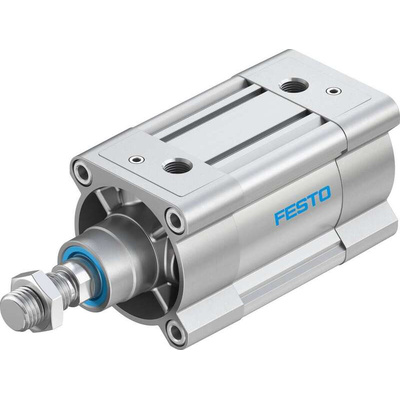

DSBC-80-40-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1383334, 80mm Bore, 40mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, 0.4 to 12 Bar Operating Pressure, 31mm Cushioning Length - DSBC-80-40-PPVA-N3

To keep your system in line, choose this pneumatic piston rod cylinder from Festo. It produces precise linear strokes to carry out tasks such as positioning and clamping. Thanks to the unit's double-acting design, air pushes the piston in both directions to achieve smooth and efficient action. Cushioning absorbs end-position impacts, so you can be sure you're getting a durable component that can take the hit from medium to heavy loads working at high speeds. The tough wrought aluminium alloy barrel stands up to corrosive damage for improved durability.

Features & Benefits

• Die-cast aluminium coating provides an extra layer of protection against environmental impacts
• Broad operating pressure range between 0.4 and 12 bar for wide compatibility
• Operating temperature range between -20°C and +80°C for use in demanding conditions

Applications

• Factory automation
• Automotive industry
• Railway applications
• Construction equipment

In which position can I mount this pneumatic piston rod cylinder?

This is a flexible component you can install in any position, depending on the needs of your setup.

What's the stroke length of this cylinder?

This unit has a 40mm stroke length to support smaller applications.
