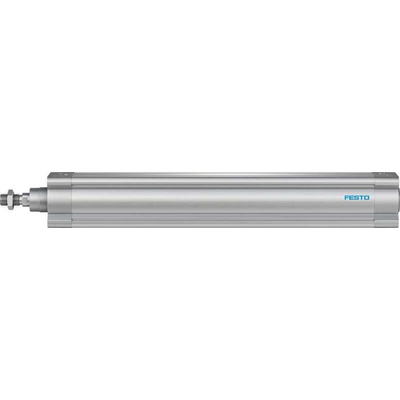

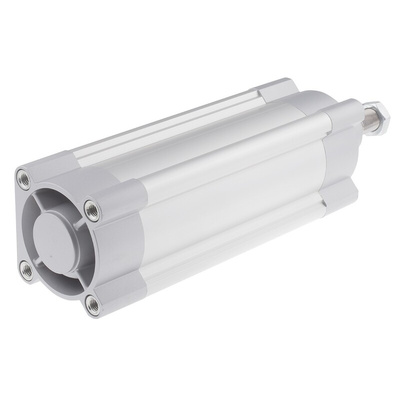

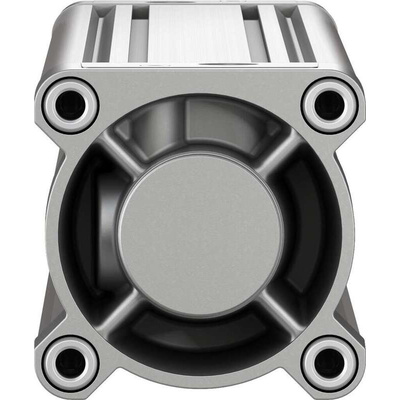

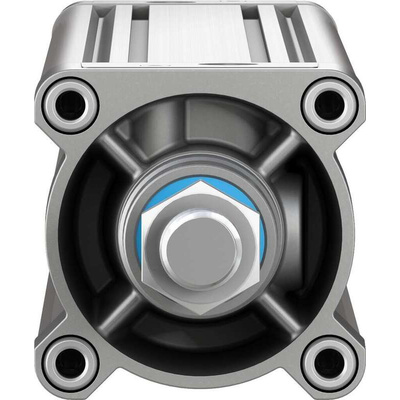

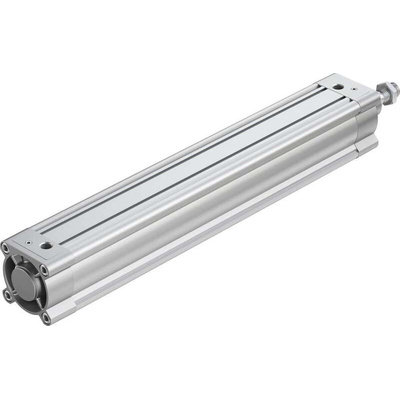

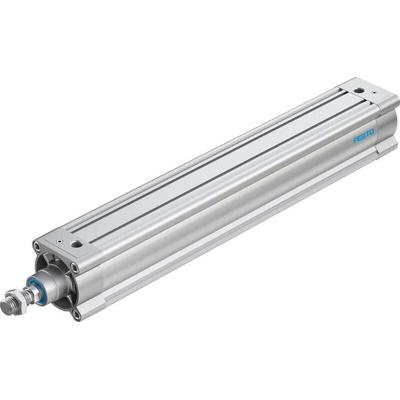

DSBC-80-500-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1383344, 80mm Bore, 500mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, 0.4 to 12 Bar Operating Pressure, 1.8J Impact Energy - DSBC-80-500-PPVA-N3

Keep your equipment on the straight and narrow with this pneumatic piston rod cylinder from Festo. It delivers 500mm linear strokes to ensure actions like clamping and positioning are done efficiently. A low-friction design shrugs off resistance to achieve streamlined, non-stop operation. Thanks to its double-ended adjustable cushioning, noise and vibration are dampened down to help ensure smooth movements. A threaded connector makes this cylinder easy to install, while the robust high-alloy steel piston rod is corrosion-resistant for a long service life.

Features & Benefits

• TPE-U(PU) seals keep the unit airtight to retain optimal pressure
• Double-acting design for precise movement control
• Designed with slots to allow flush mounting of proximity sensors
• Wide operating temperature range between -20°C and +80°C for use in harsh conditions

Applications

• Industrial assembly and packaging lines
• Agricultural equipment
• Automotive industry
• Lifts

What's the difference between a single-acting and double-acting pneumatic piston rod cylinder?

A single-acting cylinder has one port, through which air enters and pushes the rod in one direction. The double-acting type uses two ports to let in pressurised air and drive linear action in both directions.
