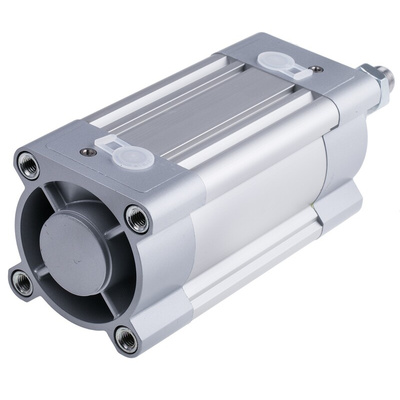

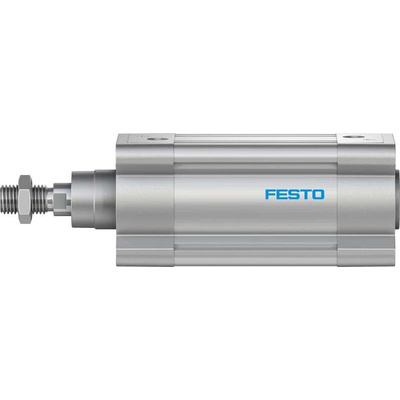

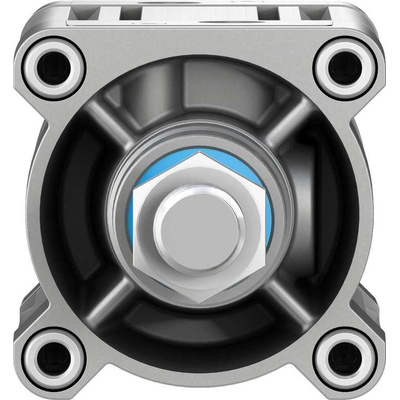

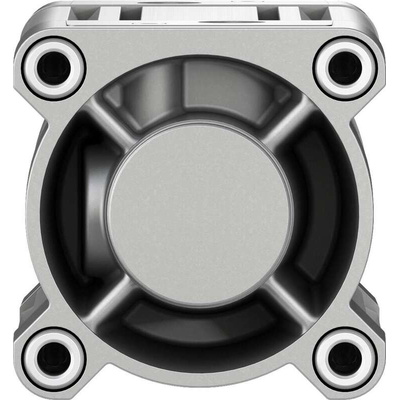

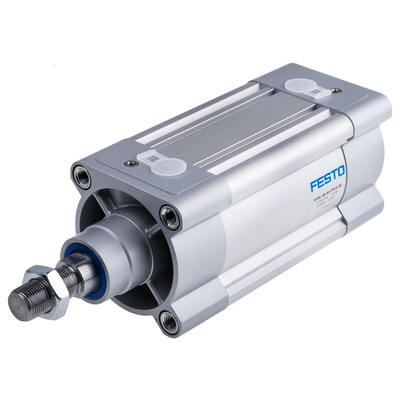

DSBC-80-80-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1383336, 80mm Bore, 80mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, 0.4 to 12 Bar Operating Pressure Range, G3/8 Pneumatic Connection - DSBC-80-80-PPVA-N3

Get the benefit of precise positioning with this pneumatic piston rod cylinder from Festo. By delivering force up to 3016N at 6 bar on the outstroke, it packs enough punch to get heavy loads moving. With its handy double-acting function, it uses air to move the piston in both directions to achieve accurate machine movements. Damp conditions are no match for this product, thanks to its corrosion-resistant aluminium casing. Air cushioning is on hand to absorb impact, minimise wear and keep your system ticking along without a hiccup.

Features & Benefits

• Standard G3/8 thread pneumatic connection for wide compatibility
• Body measurements of 93 (W) x 93 (H) x 297.6mm (L) mean it slips easily into busy setups
• PU seals stop air from escaping, maintaining system pressure
• Works safely in operating temperatures between -20°C and +80°C

Applications

• Mining industry
• Plastic processing
• Manufacturing plants

What air supplies can I use this pneumatic cylinder with?

This product works with either clean or lubricated compressed air supplies, so it's a versatile option.

Festo DSBC

Festo Pneumatic Cylinders Operating Manual

DSBC-80-80-PPVA-N3 Specification Sheet
