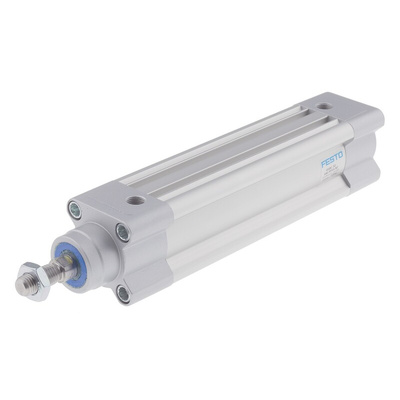

DSBC-32-100-PPSA-N3, Festo Pneumatic Cylinder - 1376471, 32mm Bore, 100mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, 0.6 to 12 Bar Operating Pressure Range, G1/8 Pneumatic Connection - DSBC-32-100-PPSA-N3

Need help pushing loads around on your industrial equipment? Go for this pneumatic cylinder from Festo. It's a general-purpose workmate in which forward and backward movements are powered by alternating compressed air through its two ports. This feature, combined with its short stroke length of 100mm, makes it the right choice for process control operations that need accurately regulated movements. The versatile unit operates without a hitch in pressure ranges between 0.6 and 12 bar. As it can be simply partnered with a proximity sensor, you can integrate it fully into an automated system.

Features & Benefits

• Self-adjusting end-position cushioning prevents noise and vibration to ensure smooth performance
• Die-cast aluminium housing resists corrosion, for safe use in harsh settings
• TPE-U(PU) seals keep out contaminants and block leakages to maintain system pressure
• Light weight of 465g means it's easy to handle during installation

Applications

• Medical equipment
• Textile industry
• Pulp and paper mills

How do I maintain this cylinder?

As it's made of weatherproof materials, this unit needs little maintenance. It's a good idea to periodically change its seals to ensure it works at its best.

Festo DSBC

Festo Pneumatic Cylinders Operating Manual

DSBC-32-100-PPSA-N3 Specification Sheet

Brochure - Simply Part of the Solution
