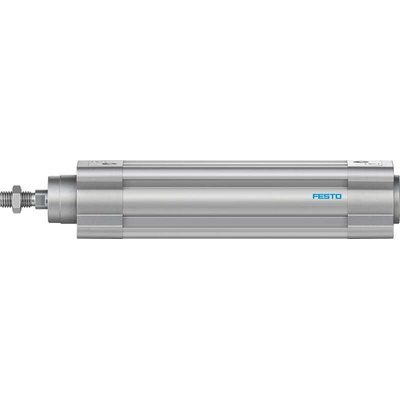

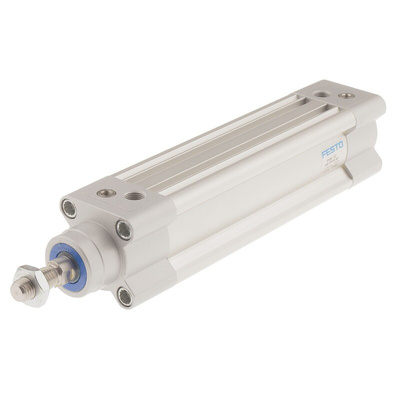

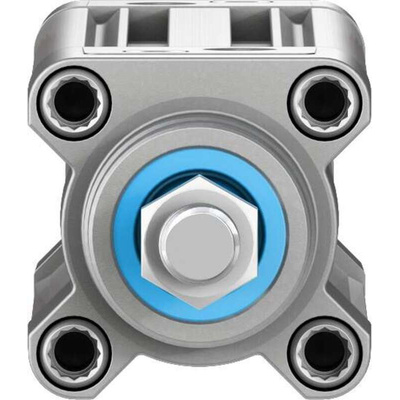

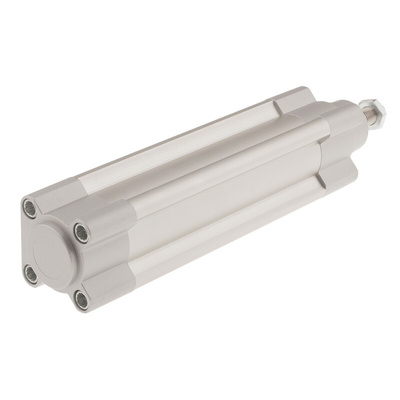

DSBC-32-100-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1376426, 32mm Bore, 100mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, 0.6 to 12 Bar Operating Pressure Range, G1/8 Pneumatic Connection - DSBC-32-100-PPVA-N3

Fly through everyday material-handling jobs with this pneumatic piston rod cylinder from Festo. Its 100mm stroke is ideal for applications that call for precise positioning. Thanks to built-in cushioning, the piston slows down before it meets the cylinder's end, to reduce the risk of wear and tear from repeated impact. Installation is hassle-free since the unit comes with a standard M10 piston rod thread. As it's protected by robust die-cast aluminium housing, it resists corrosion if you use it in damp conditions.

Features & Benefits

• Handle pressures up to 12 bar, making light work of demanding applications
• Airtight PU seals prevent leaks to keep processes moving
• Pairs with a proximity sensor (such as 253-9246) for handy position tracking
• Gets on with the job in demanding temperatures from -20°C to +80°C

Applications

• Construction equipment
• Food production
• Recycling centres

What's the difference between single-acting and double-acting pneumatic cylinders?

Single-acting units use air to extend the piston rod and a spring to retract it. Double-acting devices like this one take in air at both ends to provide full control over forward and backward movement.
