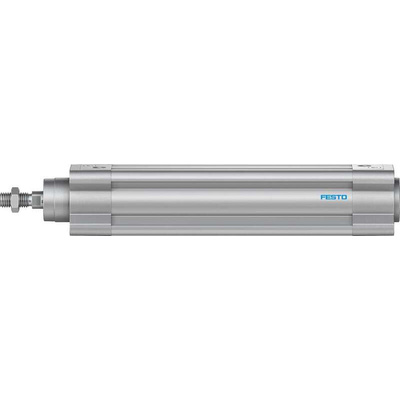

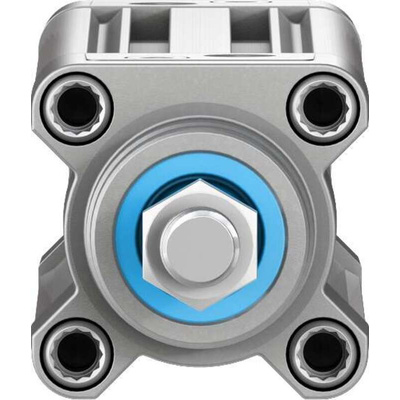

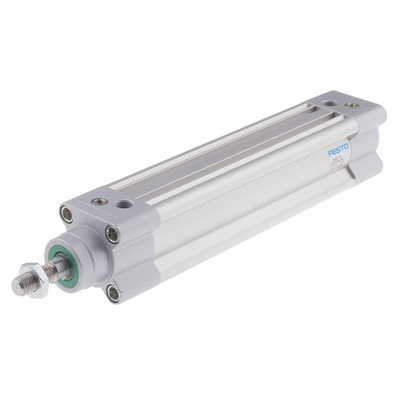

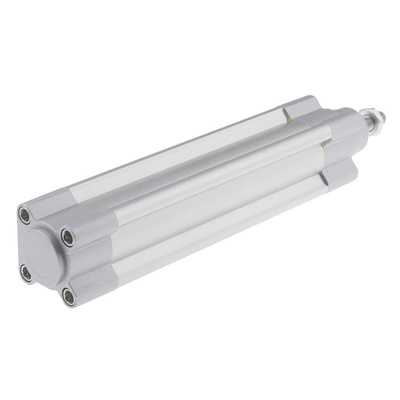

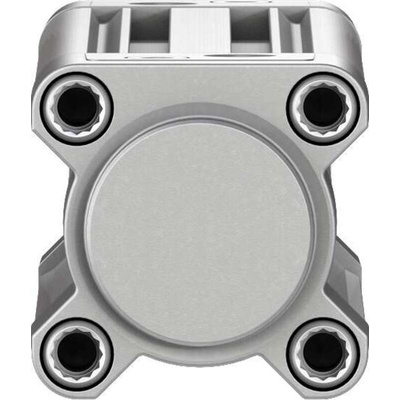

DSBC-32-125-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1376427, 32mm Bore, 125mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, 465g Weight, High Alloy Steel Piston Rod - DSBC-32-125-PPVA-N3

To push loads in the right direction, fit your pneumatic equipment with this piston rod cylinder from Festo. With a return stroke force of 415N and advance stroke force of 483N, it's the right choice for light-duty applications. The cylinder works by the forward and reverse thrust of its piston, which is powered by compressed air forced through its two ports. This makes it useful for jobs that need positive end-of-stroke positioning. To ensure long-term performance, the unit comes with adjustable PPV cushioning at both ends to reduce noise and friction.

• Magnetic piston for contactless detection by proximity sensors, so supports automated operation
• Broad operating temperature range of -20°C to +80°C for use in challenging conditions
• Light weight of 465g for easy handling during installation
• TPE-U(PU) seals block out dust and contaminants to ensure reliable performance
• Can be mounted in any position to match your design needs

Applications

• Chemical laboratories
• Automotive industry
• Oil and gas plants

Is this cylinder corrosion-resistant?

Yes, thanks to coated die-cast aluminium housing, this cylinder holds its own against rust and corrosion, making it a dependable choice for use in harsh environments.
