DSBC-32-160-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1376428, 32mm Bore, 160mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

DSBC Series Profile Cylinders - Adjustable Pneumatic Cushioning

Festo DSBC series pneumatic cylinders with adjustable pneumatic cushioning at both ends of the actuator barrel. Featuring a high-alloy steel piston rod provides excellent running performance, low overall weight and long service life. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod in a linear motion. Magnetic piston rods allow contactless position detection via a proximity sensor mounted in slots along the cylinder body.

Adjustable Pneumatic Cushioning

The DSBC PPV type adjustable cushioning pneumatic cylinders are equipped with a special cushioning piston as an extension to the main piston. This pneumatic cushioning builds up an air cushion to absorb energy in the end positions, building up and exhausting air in a targeted fashion.. This energy absorbing method makes these cylinders ideal for medium to heavy loads and high speed applications.

Features and Benefits

Corresponds to ISO 15552 standard
Slots for flush mounting proximity sensors
Low friction design allowing for continuous operation
Adjustable end cushioning helping to reduce noise and vibration

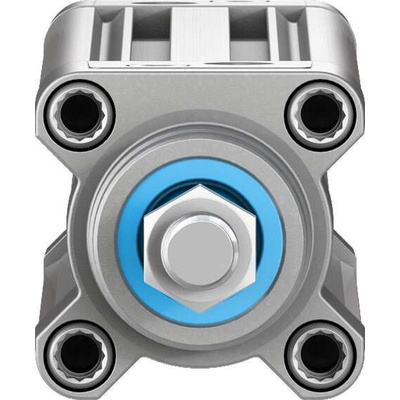

High-alloy steel piston rod with threaded connector
Wide range of stroke length and bore size variants that can be configured to suit a broad range of applications
Double acting operation

How do I mount the pneumatic actuator?

The DSBC series pneumatic round actuators conform to ISO 15552 standards allowing them to be mounted in any position to suit the required application. The ISO 15552 standard establishes metric mounting dimensions for cylinders providing interchangeability of commonly used hydraulic and pneumatic cylinders. Optional mounting accessories provide further flexibility allowing the cylinder to be attached with a swivel bracket for free movement, foot mounted for support under high loads or combined with other actuators to give a wider range of movement.

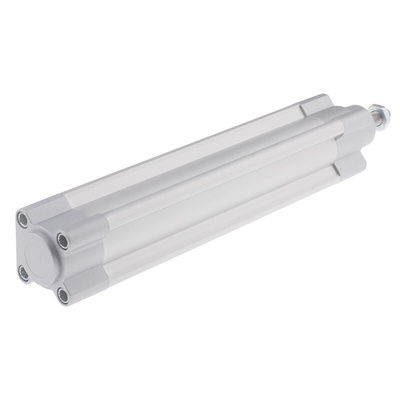

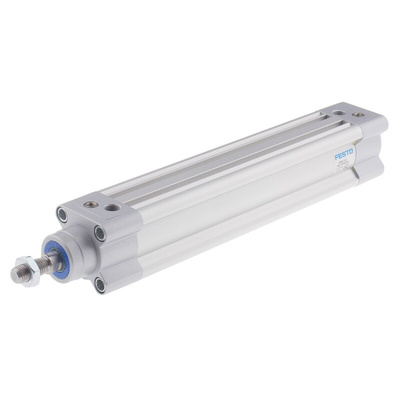

Festo Pneumatic Piston Rod Cylinder, 305.1mm Length, Anodised Aluminium Alloy Barrel - DSBC-32-160-PPVA-N3

Get your system up and running with this double-acting pneumatic piston rod cylinder from Festo. It generates 483N of out-thrust at 6 bar and 415N on the return, making it a reliable choice for a wide variety of applications. With a 160mm stroke and 32mm bore, this is a good all-rounder that makes positioning, clamping and moving components in your industrial or automated process a breeze.

Features & Benefits

• Performs without a hitch in demanding temperatures between -20°C and +80°C
• Robust TPE-U seals stop debris from getting in, reducing the risk of damage from contaminants
• Standard G1/8 connection hooks quickly into existing systems for convenience

Applications

• Manufacturing industry
• Food and drinks production
• Agricultural machinery

What does double-acting mean?

This double-acting unit's designed to take in and expel air through a port at each end. This drives the piston backwards and forward accurately and does away with the spring-return mechanism that many single-acting alternatives rely on.

How can debris damage my pneumatic system?

Using a cylinder that keeps debris out is essential as dust and moisture can result in corrosion or blockages. Maintaining clean air improves safety and extends the longevity of your equipment.
