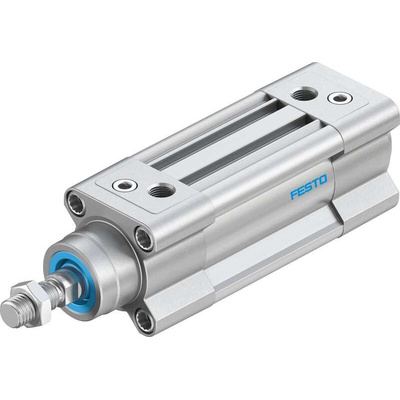

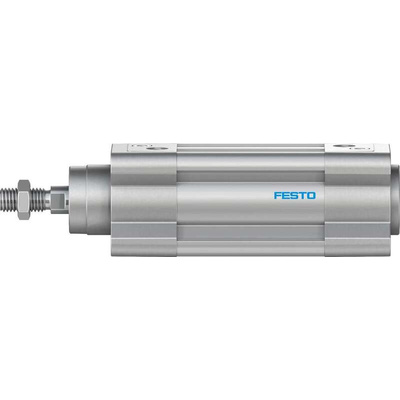

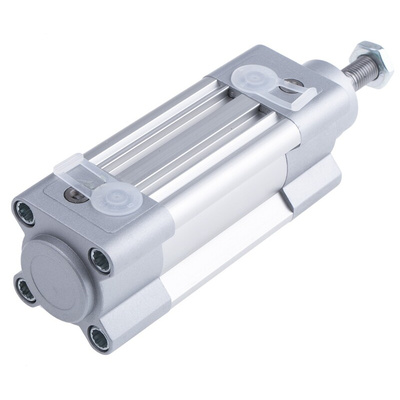

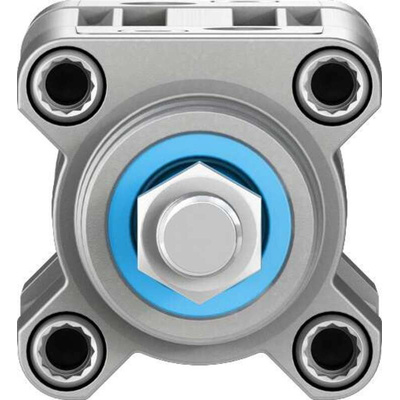

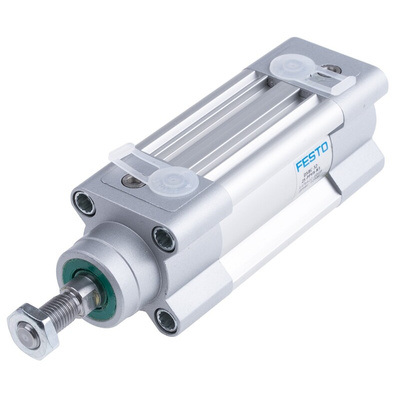

DSBC-32-25-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1376422, 32mm Bore, 25mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, Air Cushioning, 12 Bar Maximum Operating Pressure - DSBC-32-25-PPVA-N3

Get precise machine movement with this pneumatic piston rod cylinder from Festo. It's double-acting, so you can count on it to handle pushing and pulling as well as lifting and lowering tasks. Integrated cushioning at both ends absorbs energy and keeps motions free from vibrations so your material-handling and tooling jobs run smoothly. The cushioning is adjustable, making it easy to tailor to your applications. Slots in the cylinder body let you flush-mount an SMT-series proximity sensor (121-5836) for spot-on positioning every time.

Features & Benefits

• Operates at pressures between 0.6 and 12 bar for compatibility with low-to-medium-power pneumatics
• Wrought aluminium barrel, high-alloy steel rod and TPE-U seals ensure it's strong and durable
• Does the job reliably in temperatures from -20°C to +80°C
• Suitable for use with lubricated and non-lubricated air for flexibility

Applications

• Pharmaceutical industry
• Biotechnology
• Manufacturing lines
• Packaging plants

How do I mount this cylinder so it can pivot?

You can mount this cylinder on a swivel (121-5845) or trunnion flange (202-2679) to make it pivot in multiple directions.

Festo DSBC

Festo Pneumatic Cylinders Operating Manual

DSBC-32-25-PPVA-N3 Specification Sheet
