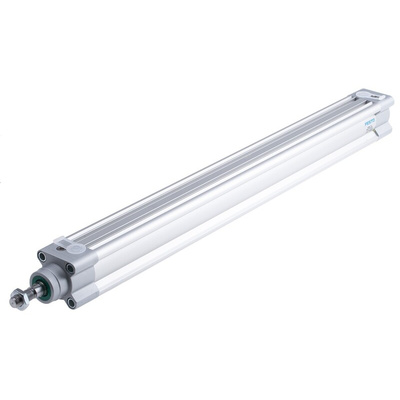

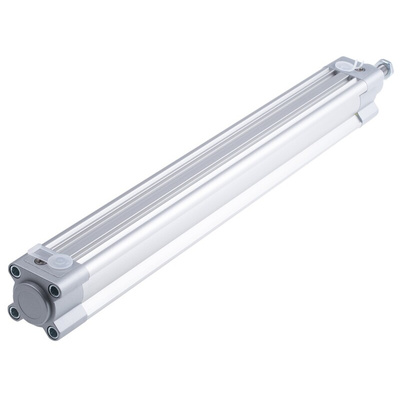

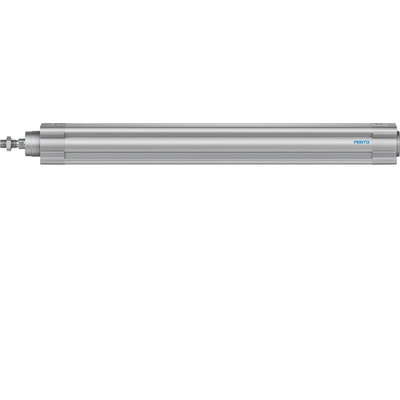

DSBC-32-320-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1376431, 32mm Bore, 320mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, G1/8 Port Connection, High-Alloy Steel Piston Rod Material - DSBC-32-320-PPVA-N3

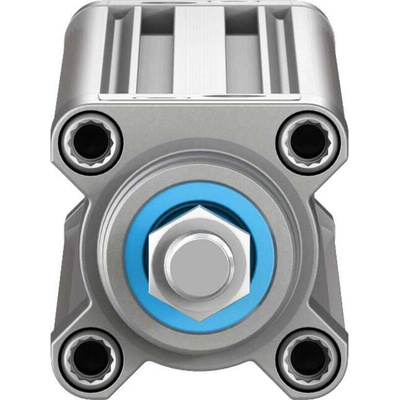

Get loads moving in the right direction with this pneumatic piston rod cylinder from Festo. This double-acting device uses compressed air to extend and retract its piston rod, giving you precise forward and backward movement. It features a male threaded end for a secure connection that won't come loose in the event of heavy vibrations. TPE-U seals help to prevent leakage for efficient performance. The piston rod is made of high-alloy steel for resistance to impact and corrosion, so you can rest assured it holds up in harsh conditions.

Features & Benefits

• Operates in pressures between 0.6 and 12 bar for use in low and high-pressure applications
• G1/8 port connection for compatibility with standard equipment
• Stroke length of 320mm for long-range movement
• Safe for use in challenging settings, thanks to a broad operating temperature range between -20°C and +80°C

Applications

• Lifts and elevators
• Robotics and automation
• Materials handling equipment

What's the most suitable assembly position for this cylinder?

It can be assembled in any position, giving you flexibility in your setup.
