DSBC-32-500-PPSA-N3, Festo Pneumatic Piston Rod Cylinder - 1376478, 32mm Bore, 500mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

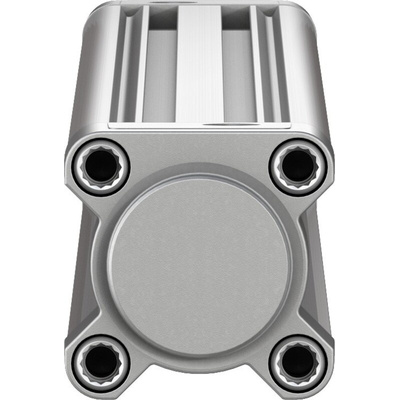

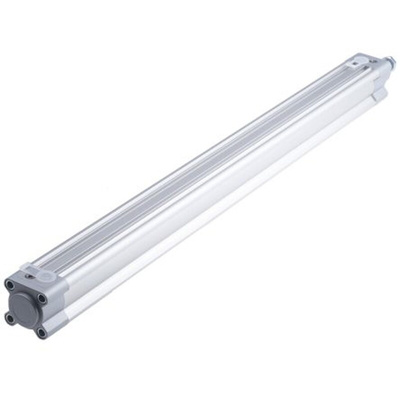

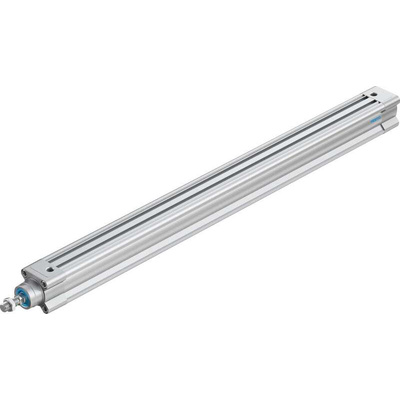

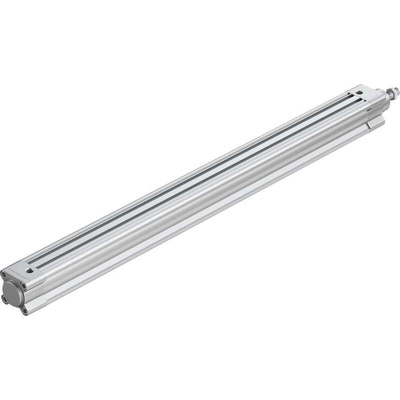

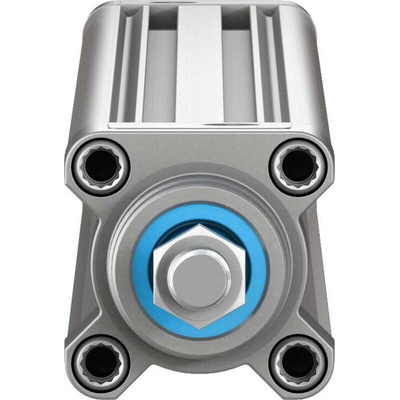

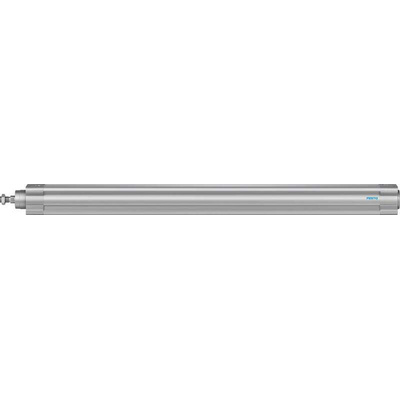

Festo Pneumatic Piston Rod Cylinder, Air Cushioning, 32mm Bore - DSBC-32-500-PPSA-N3

Put workpieces in their place with this pneumatic piston rod cylinder from Festo. This long-armed device has a stroke length of 500mm to help you move and position items over greater distances. The double-acting mechanism means you can carry out motions in two directions to handle the push and pull of systems. This smooth operator is designed with pneumatic cushioning to absorb excess energy, which gives you reliable control and reduces wear and tear on the parts. As it's self-adjusting, there's no need for manual tweaks, meaning setup is quick and easy.

Features & Benefits

• High-alloy steel construction ensures the rod is strong and heat-resistant
• Robustly built to operate in temperatures from -20°C to +80°C
• G1/8 port connection for wide compatibility with commonly used pneumatic valves and fittings
• Threaded end on rod makes it a piece of cake to add clamping accessories

Applications

• Machine automation
• Assembly lines
• Hoists and lifts

Can I add a proximity sensor to this pneumatic cylinder?

Yes, the rod is magnetic to enable position detection. Grooves in the cylinder housing mean you can conveniently slot in an SMT-series proximity sensor (121-5836).

Festo DSBC

Festo Pneumatic Cylinders Operating Manual

DSBC-32-500-PPSA-N3 Specification Sheet
