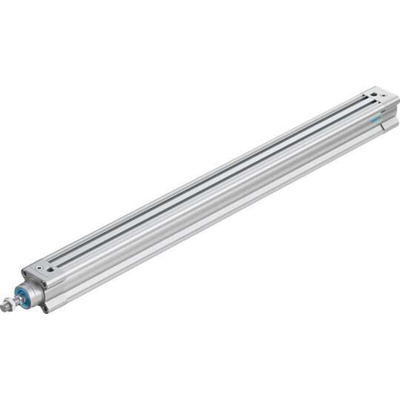

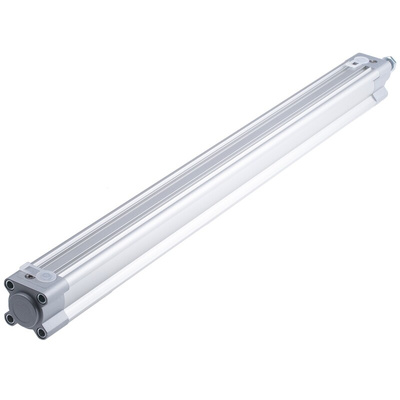

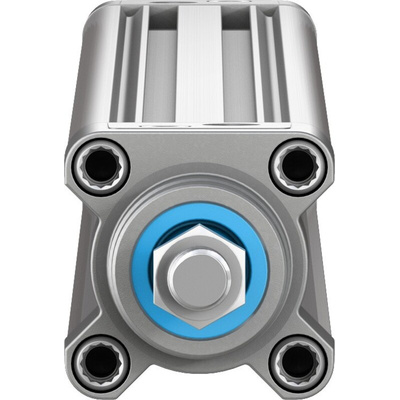

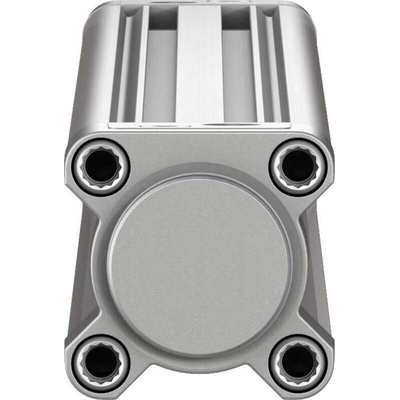

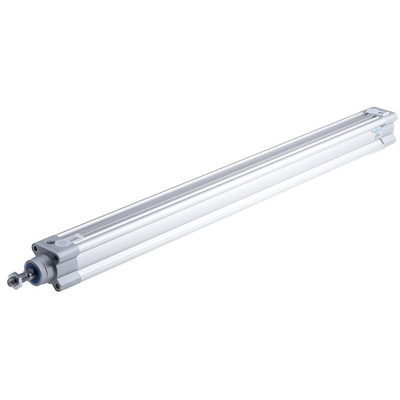

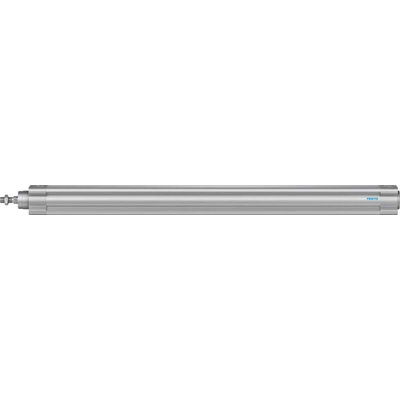

DSBC-32-500-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1376433, 32mm Bore, 500mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, TPE-U(PU) Seals, High Alloy Steel Piston Rod - DSBC-32-500-PPVA-N3

Take the movement of heavy loads off your worry list with this pneumatic piston rod cylinder from Festo. The alternate opening and closing of its two air ports channels compressed air through its piston to achieve forwards and backwards thrust. This makes it your go-to work partner for lifting and dropping materials. For enhanced long-term performance, it comes with adjustable PPV cushioning on both ends to reduce the impact from the piston rod on its return stroke.

Features & Benefits

• Broad operating temperature range of -20°C to +80°C for use in challenging conditions
• Stroke length of 500mm for long-range load movement
• Maximum operating pressure of 12 bar makes it suitable for heavy-duty applications
• Light weight of 465g for easy handling during installation
• Compatible with proximity sensors for automated operation

Applications

• Construction industry
• Water treatment facilities
• Food production plants

How do I mount this cylinder?

This unit has a G1/4 thread that allows you to screw it onto your equipment. This process is simple and doesn't need complex tools, saving time and hassle. You can mount it in any position to suit the layout of your system.
