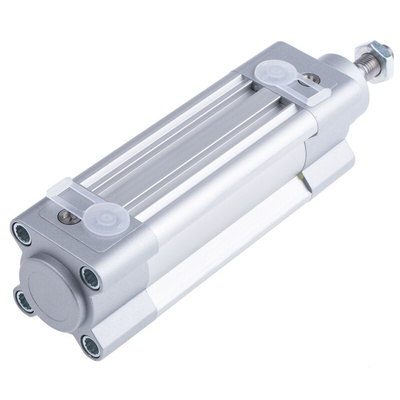

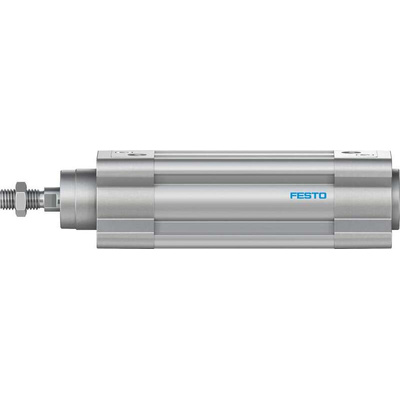

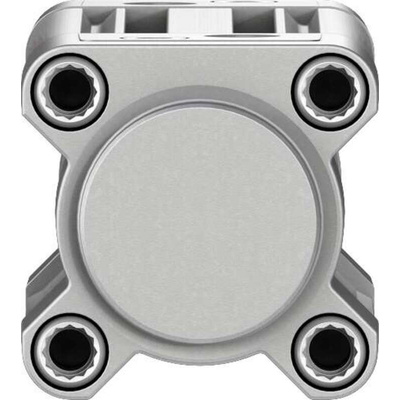

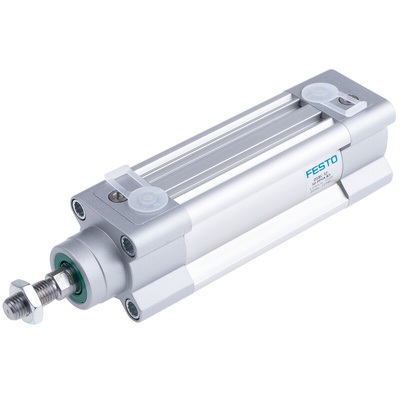

DSBC-32-50-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1376424, 32mm Bore, 50mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, Air Cushioning Type, 12 Bar Maximum Operating Pressure - DSBC-32-50-PPVA-N3

Push your machine into action with this pneumatic piston rod cylinder from Festo. It's double acting, meaning you have control over the advancing and retracting stroke of the piston rod. The rod is magnetic to make accurate position detection a doddle, so you can precisely move and place objects. As accuracy is always a priority, there's adjustable air cushioning at both ends that lets you tweak the unit to suit your application. It takes the strain of pressures up to 12 bar, meaning this is a compatible option for use with low-power and high-power systems.

• Mounts in any position for flexibility
• Works with lubricated or unlubricated systems for versatility
• Wide operating temperature range between -20°C and +80°C suits use in extreme settings
• High-alloy steel rod and anodised wrought-aluminium barrel give it strength and corrosion resistance

Applications

• Process control
• Industrial automation
• Machine tools
• Lifts and hoists

What proximity sensors work with this pneumatic piston rod cylinder?

The unit is widely compatible with SDBT series proximity sensors from Festo.

How heavy is the cylinder?

As it weighs in at just 465g, this unit is light enough to mount on machine frames and arms.

Festo DSBC

Festo Pneumatic Cylinders Operating Manual

DSBC-32-50-PPVA-N3 Specification Sheet

Brochure - The Future of Standard Cylinders
