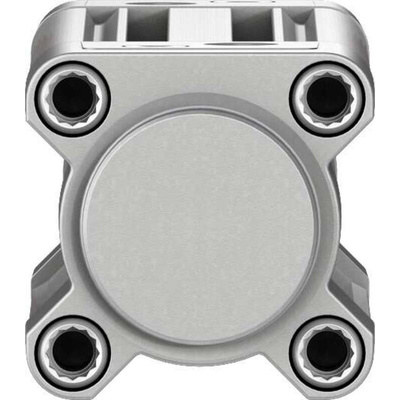

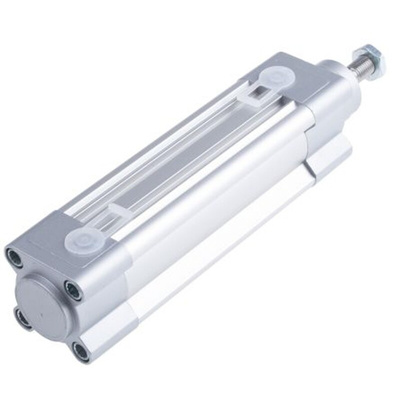

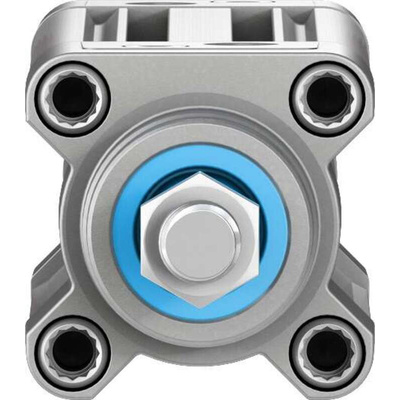

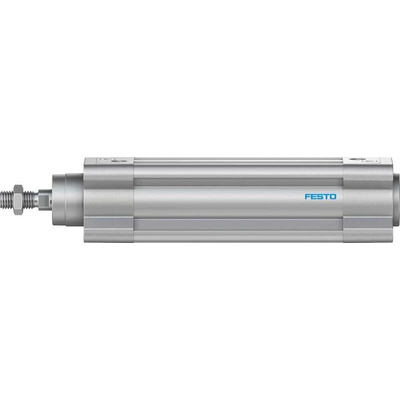

DSBC-32-80-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1376425, 32mm Bore, 80mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, 0.6 to 12 Bar Operating Pressure, Air Cushioning Type - DSBC-32-80-PPVA-N3

Use this hard-working pneumatic piston rod cylinder from Festo to get your automated system up and running. As it's a double-acting device, you can keep close control over linear movement in both directions. The push and pull of demanding industrial processes don't pose a problem, as the unit's capable of a 483N force on the advance stroke and a 415N force on the return stroke at a 6 bar operating pressure. Clever air cushioning at each end keeps these movements smooth and prevents impact damage. You can tweak it to accurately match your system's load and speed requirements.

• Anodised wrought-aluminium and high-alloy steel construction for durability
• Modular design supports the easy addition of sensors, valves and clevis-style attachments
• Broad operating temperature range of -20°C to +80°C to handle tough conditions
• Regulation G1/8 ports make pipeline hook-ups straightforward

Applications

• Machine tools
• Packaging equipment
• Rollers and conveyors
• Hoists and lifts

What's the operating pressure of this pneumatic piston rod cylinder?

The device operates at pressures between 0.6 to 12 bar, making it widely compatible with industrial applications.
