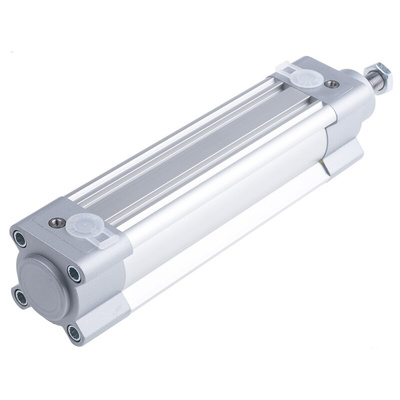

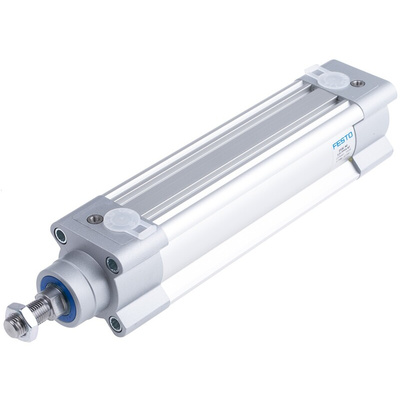

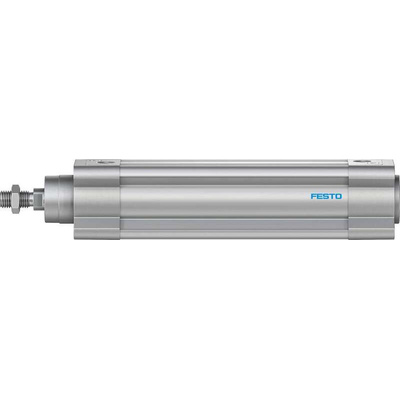

DSBC-40-125-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1376661, 40mm Bore, 125mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, 740g Weight, Air Cushioning Type - DSBC-40-125-PPVA-N3

Looking for a positioning solution for your compressed air system? Choose this pneumatic piston rod cylinder from Festo. A 40mm bore and 125mm stroke capacity make it a force to be reckoned with when shifting larger loads. It's at home working in an operating pressure range between 0.6 and 12 bar, making it a versatile choice. An inbuilt cushioning system means that the endpoints only experience 0.7J of impact, to reduce stress and make sure the cylinder delivers a long service life.

Features & Benefits

• Compact dimensions of 286.9 (L) x 54 (W) x 54mm (H) mean it's space-efficient
• Generates up to 754N of force at 6 bar, so it's suitable for demanding applications
• Aluminium-alloy barrel resists mechanical stress and corrosion for longevity

Applications

• Pharmaceutical production
• Automotive manufacture
• Agricultural equipment

Can I use this device in harsh industrial conditions?

Yes. You can depend on it to perform at its best in temperatures from -20°C to +80°C.

What type of pneumatic connection does this cylinder have?

This cylinder has a standard G1/4 pneumatic connection, for easy compatibility with your existing equipment.

Festo DSBC

Festo Pneumatic Cylinders Operating Manual

DSBC-40-125-PPVA-N3 Specification Sheet
