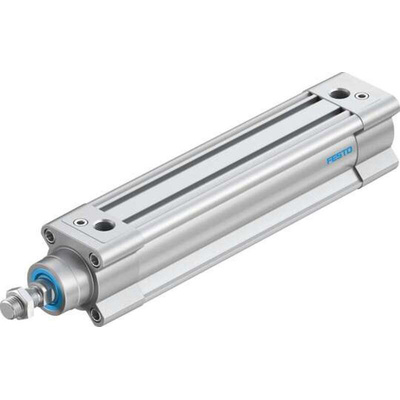

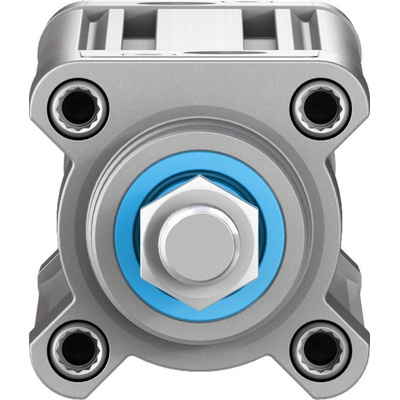

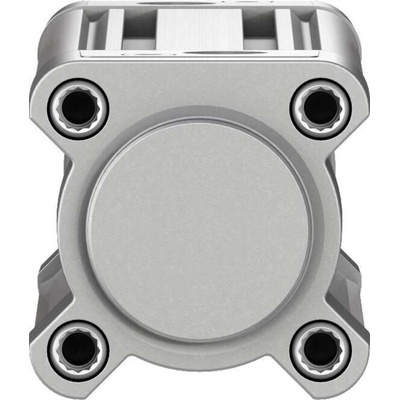

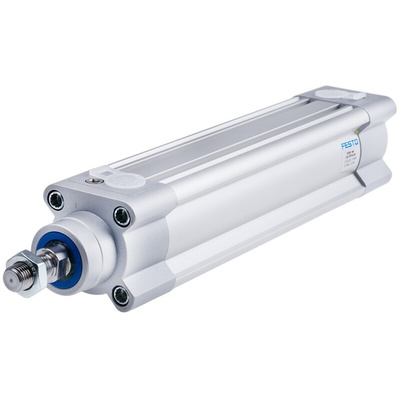

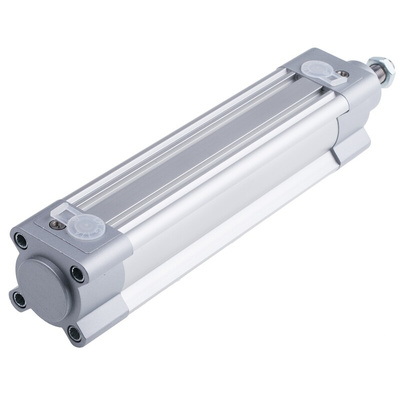

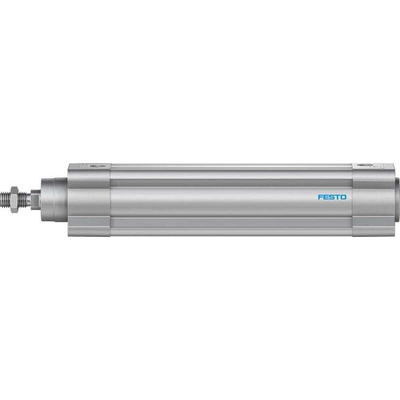

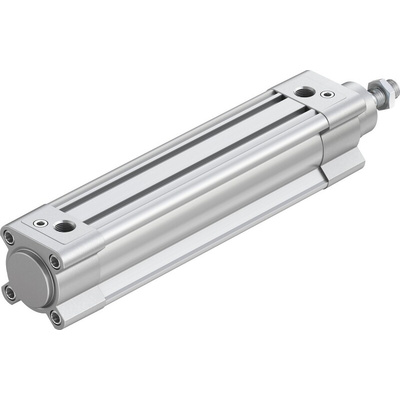

DSBC-40-150-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 2123226, 40mm Bore, 150mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, Air Cushion Type, 12 Bar Maximum Operating Pressure - DSBC-40-150-PPVA-N3

When you need to make sure your system's components are in the best position for the job, use this pneumatic piston rod cylinder from Festo. Thanks to its double-acting rod, you can control movement in both directions, meaning precise clamping and placing is no problem. A pocket of air at each end absorbs excess energy to ensure movements are smooth and internal parts won't wear out in a hurry. This cushioning is adjustable to compensate for changing loads and to keep performance at its peak. There are two slots on the housing, making it a cinch to add position-sensing devices and automate processes. As it mounts in any position, you can place this cylinder exactly where it's needed.

Features & Benefits

• 150mm stroke supports lengthy movements
• Coated aluminium body and high-alloy steel rod for durability
• Wide operating temperature range of -20°C to +80°C to handle harsh conditions

Applications

• Lifting and hoisting equipment
• Industrial conveyors
• Gates and doors
• Robotics systems

What's the operating pressure range of this pneumatic piston rod cylinder?

It has an operating pressure between 0.6 and 12 bar. This means you can use this pneumatic cylinder with both low-power and medium-power systems.
