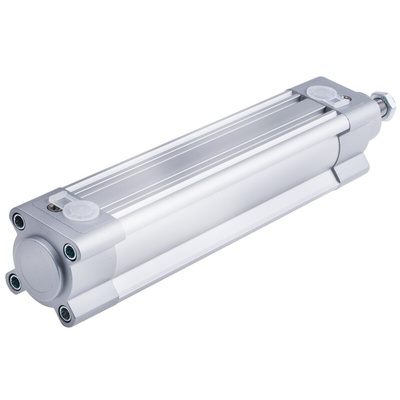

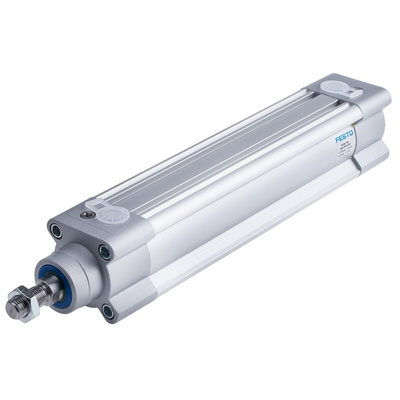

DSBC-40-160-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1376662, 40mm Bore, 160mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, Air Cushioning, G1/4 Port - DSBC-40-160-PPVA-N3

Use this pneumatic piston rod cylinder from Festo to handle the ups and downs of automation. It has a double-acting mechanism, so it can control movement on the outward and inward strokes. This makes it handy for lifting and lowering as well as pushing and pulling tasks. The modular design means you can mount it with flanges and footings and add clamping and coupling accessories. The rod gives you a stroke length of 160mm, to enable precise picking and placing tasks. As the end is threaded, it's easy to screw on and change accessories such as clamps.

Features & Benefits

• Works in temperatures between -20°C and +80°C to handle plant and factory conditions
• Pneumatic cushioning is adjustable at both ends, so you can tailor it to different loads
• Made with wrought aluminium and high-alloy steel for strength and durability

Applications

• Packaging systems
• Assembly lines
• Robotics systems

How do I detect the position of the rod on this cylinder?

You can detect the position of the rod on this pneumatic cylinder with a proximity switch (121-5836). This slides into the slots on the cylinder body and fastens tight using the screw on the sensor, so it's quick to fit.
