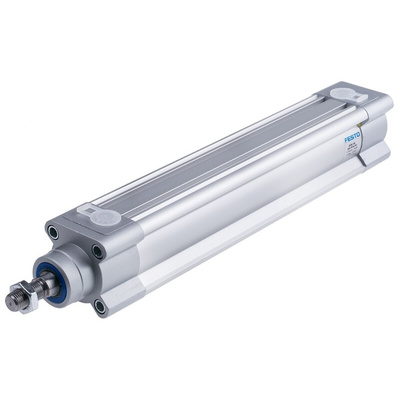

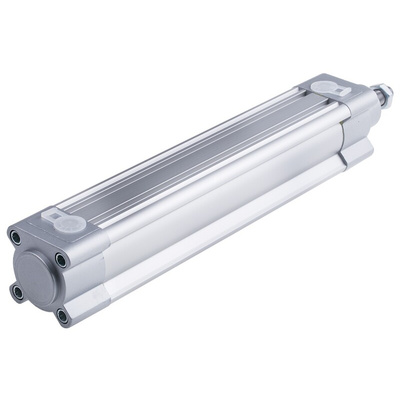

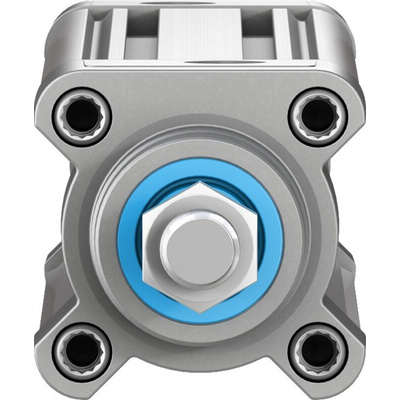

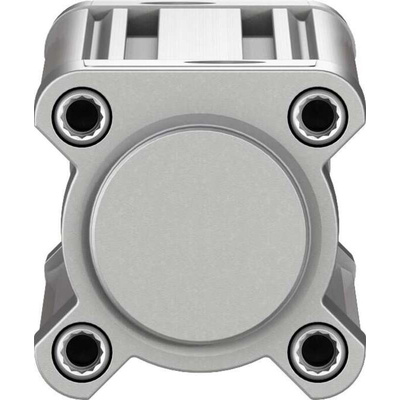

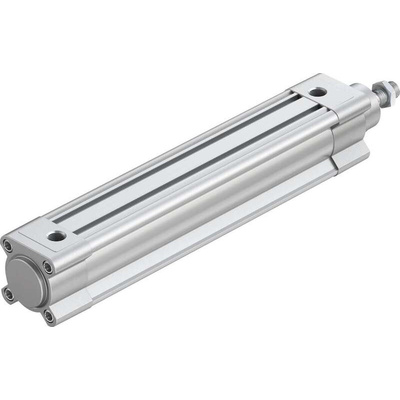

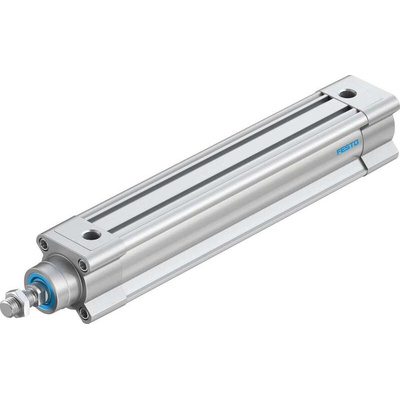

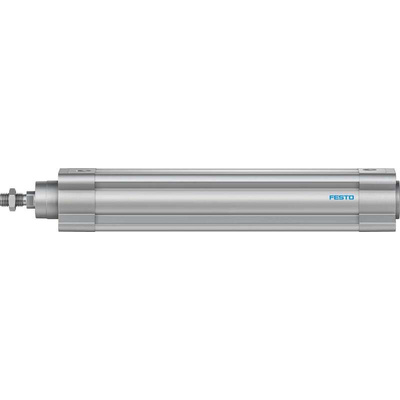

DSBC-40-200-PPSA-N3, Festo Pneumatic Piston Rod Cylinder - 1376910, 40mm Bore, 200mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, 12 Bar Maximum Operating Pressure, G1/4 Port Size - DSBC-40-200-PPSA-N3

Make sure your machinery hits the mark every time with this pneumatic piston rod cylinder from Festo. As it's double-acting, the rod controls motion as it extends and retracts, meaning you can pull as well as push objects. It has a long stroke length of 200mm, making it handy for conveying, tool-head and processing applications. Both ends are cushioned to absorb energy, give you smooth movement and minimise wear. Built with a magnetic rod and mounting slots in the barrel, it pairs with an SMT proximity sensor (121-5836) to give you spot-on control of your automated process.

Features & Benefits

• Operates reliably between 0.6 and 12 bar, so it's a versatile option
• Threaded rod end for easy accessory attachment
• Cushioning is self-adjusting to save you set-up time

Applications

• Packaging equipment
• Food and drinks processing
• Electronics assembly
• Materials manufacture

How hardwearing is this pneumatic piston rod cylinder?

This cylinder has a coated aluminium cover, high-alloy steel rod and TPE-U seals, so you can be sure it's strong and durable. This rugged design allows it to operate in temperatures between -20°C and +80°C.

Festo DSBC

Festo Pneumatic Cylinders Operating Manual

DSBC-40-200-PPSA-N3 Specification Sheet
