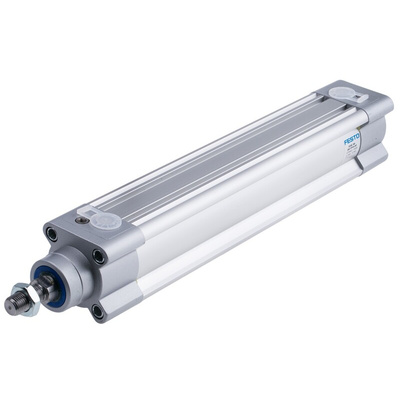

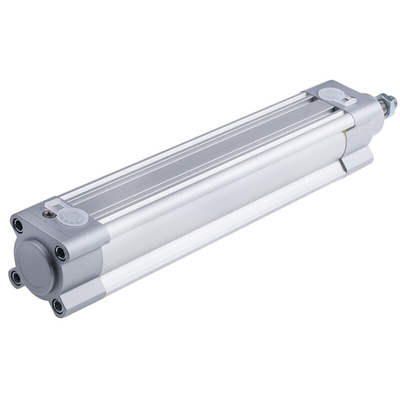

DSBC-40-200-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1376663, 40mm Bore, 200mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, Piston Rod, 200mm Stroke - DSBC-40-200-PPVA-N3

Need a versatile pneumatic cylinder to work with a custom processing system? This option from Festo is mountable in any position, so you can use it with vertical lifting or horizontal pushing applications. As it's double-acting, it moves loads in two directions for greater functionality. Air cushioning at the barrel ends minimises noise and reduces wear to parts. To work with specific load and speed requirements, this cushioning is adjustable. The rod holds in position for long periods of time, making it suitable for materials handling and machine tools.

• Wide operating temperature range between -20°C and +80°C for use in harsh conditions
• Slots on the cylinder body for the flush mounting of proximity sensors, which saves space
• Long stroke of 200mm for high power at lower speeds
• Works with pressures between 0.6 and 12 bar, increasing compatibility with existing valves and sensors in your system

Applications

• Process control
• Automated machinery
• Lifts and elevators
• Machining equipment

Is this pneumatic cylinder durable in industrial environments?

Yes, this pneumatic cylinder is made with a corrosion-resistant high-alloy steel piston rod and anodised wrought aluminium barrel. It will stand up to common industrial conditions such as contact with coolants and lubricating agents.

Festo DSBC

Festo Pneumatic Cylinders Operating Manual

DSBC-40-200-PPVA-N3 Specification Sheet
