DSBC-40-250-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1376664, 40mm Bore, 250mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

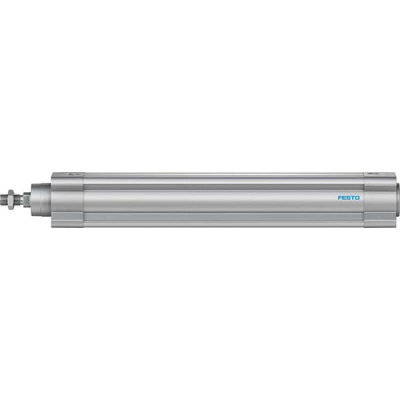

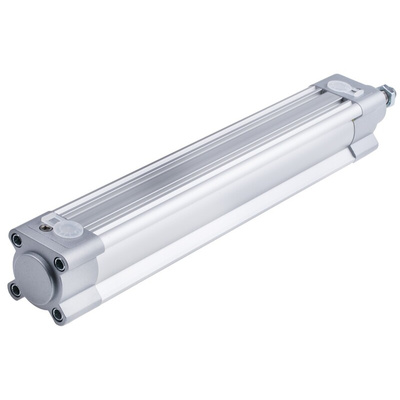

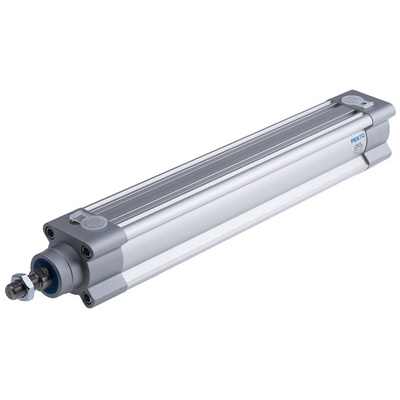

Festo Pneumatic Piston Rod Cylinder, Male Thread, G1/4 Pneumatic Connection - DSBC-40-250-PPVA-N3

Moving loads in your compressed air system is a breeze with this pneumatic piston rod cylinder from Festo. It's a powerful choice that generates up to 754N of force thanks to its 250mm stroke and 40mm bore, making it well-suited to high-speed applications. The unit's double-action design means compressed air drives the piston in both directions, so it's ideal for packaging equipment or factory automation. As it works in a pressure range between 0.6 and 12 bar, it's a versatile option. PU seals mean that contaminants are kept at bay, so you can rest assured this cylinder will go on delivering top-notch performance over the long term.

Features & Benefits

• Air cushioning system minimises impact to increase longevity and reduce noise
• High alloy steel piston resists mechanical stress and corrosion, for a long service life

Applications

• Textile industry
• Pulp and paper mills
• Hospitals and medical centres

What size is this cylinder?

It has compact dimensions of 411.9 (L) x 54 (W) x 54mm (H), so it fits neatly into busy systems.

How much does the cylinder weigh?

This cylinder weighs in at just 740g, so it won't strain your system.
