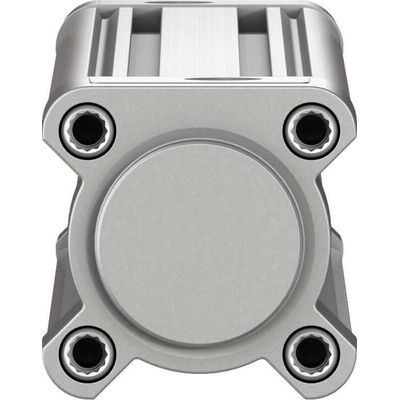

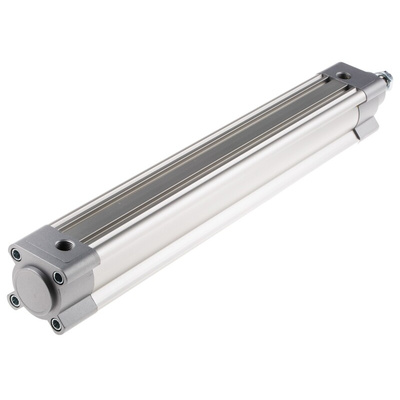

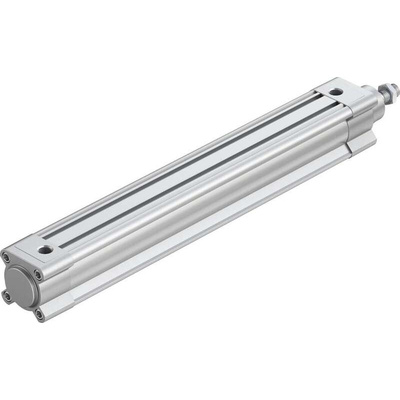

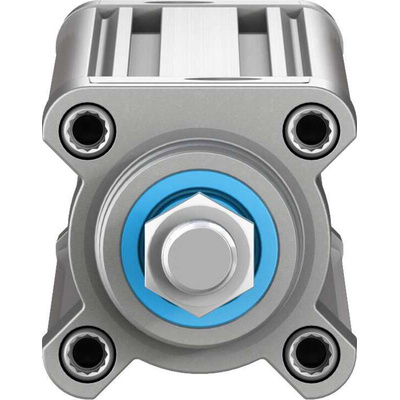

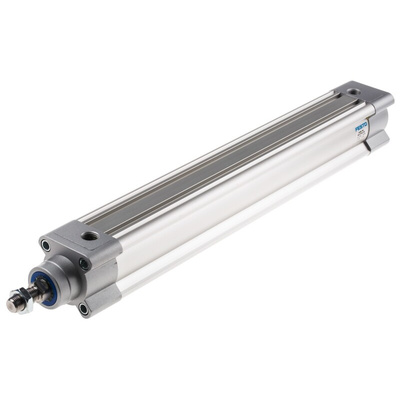

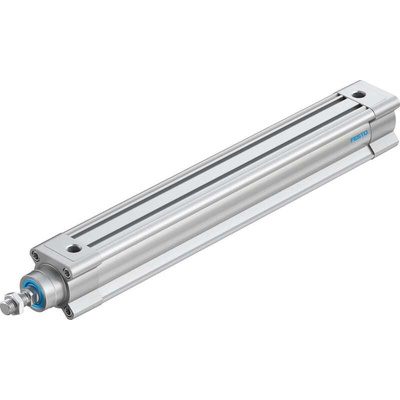

DSBC-40-300-PPSA-N3, Festo Pneumatic Piston Rod Cylinder - 2123785, 40mm Bore, 300mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, 0.6 to 12 Bar Operating Pressure, G1/4 Pneumatic Connection - DSBC-40-300-PPSA-N3

If your industrial process depends on reliable linear motion, pick this pneumatic piston rod cylinder from Festo. The unit clamps, positions and ejects objects in a straight line. It takes in compressed air at both ends to power retraction and thrust, meaning you get precise performance. The barrel is coated with a wrought aluminium alloy that's rust-resistant, assuring you of a long lifespan in damp and humid environments. This hardy component takes tough conditions on the chin, working reliably at temperatures between -20°C and +80°C.

Features & Benefits

• Does the job in a wide operating pressure range between 0.6 and 12 bar
• 40mm bore saves space in your installation
• G1/4 port connection is widely compatible with standard fittings
• Double-ended cushioning absorbs impacts, extending the service life of the component

Applications

• Vehicle manufacture and repairs
• Assembly and packaging lines
• Medical imaging equipment

Do I have to adjust the cushioning on this pneumatic piston rod cylinder?

Thanks to the self-adjusting cushioning, there's no need to tweak the settings yourself. This intuitive design even adapts the cushioning according to changing loads and speeds.
