DSBC-40-50-PPVA-N3, Festo Pneumatic Cylinder - 1376658, 40mm Bore, 50mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, 40mm Bore, 50mm Stroke - DSBC-40-50-PPVA-N3

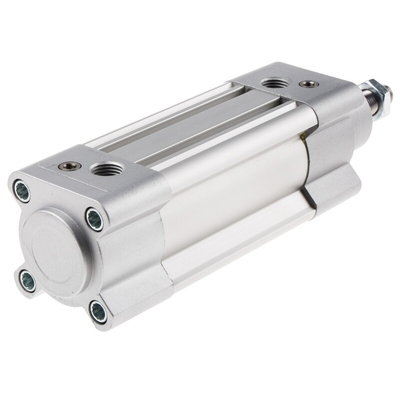

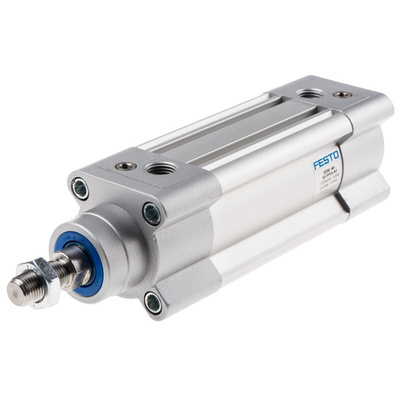

Use this double-acting cylinder from Festo to handle the bidirectional movement of loads in your pneumatic system. Its piston responds to the pressure difference between the cylinder's two air ports, causing it to extend and retract as needed. A durable high-alloy steel construction gives the piston optimal performance, and the unit features a die-cast aluminium shell that's both sturdy and lightweight. For convenience, it has mounting slots for proximity sensors that adjust its movement based on the requirements of the job at hand.

• 50mm stroke for use in small-scale applications
• Manually adjustable pneumatic cushioning to reduce noise and vibration for longer service life
• High advance force of 754N at 6 bar pressure delivers powerful performance
• Wide operating temperature range of -20°C to +80°C for use in challenging environments

Applications

• Earth-moving equipment
• Aviation industry
• Factory conveyors

How much does this cylinder weigh?

This cylinder has a light weight of 205g, so it's easy to handle and won't strain your equipment.

What's the function of the TPE seals on this cylinder?

The thermoplastic elastomer (TPE) seals on this cylinder prevent air leakage and ensure effective performance.
