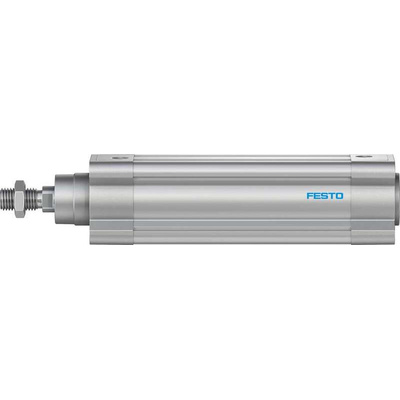

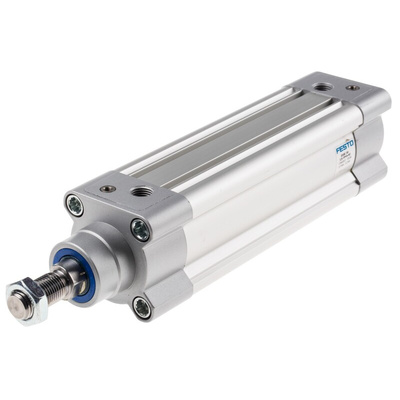

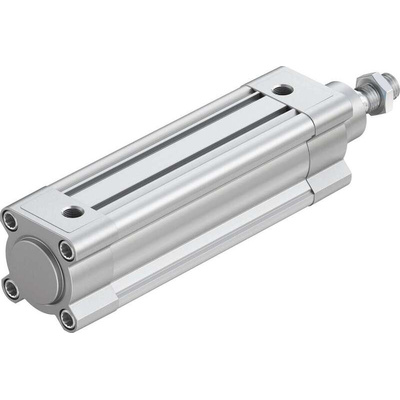

DSBC-50-125-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 1366953, 50mm Bore, 125mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, Air Cushion Type, 12 Bar Maximum Operating Pressure - DSBC-50-125-PPVA-N3

When you need to complete precision manoeuvres, turn to this pneumatic piston rod cylinder from Festo. It's double-acting, so the rod extends and retracts to give you accurate control in both directions. It has a stroke length of 125mm and an advance stroke force of 1178N at 6 bar. This means it's capable of long and strong movements, even in low-pressure systems. Air cushioning at both ends keeps it gliding along smoothly with minimal wear. This cushioning is adjustable, so you can match it to your load requirements.

Features & Benefits

• Wide operating temperature range of -20°C to +80°C means it can handle harsh conditions
• Works with lubricated and unlubricated media for versatility
• Coated aluminium housing and high-alloy steel rod ensure durability and a long service life

Applications

• Food and beverage production
• Packaging equipment
• Industrial conveyors
• Robotics systems

How easy is it to integrate this pneumatic piston rod cylinder with other components?

The modular design of this pneumatic cylinder makes it easy combine with other automated devices. Two slots on the body make it a cinch to add proximity sensors and switches.
