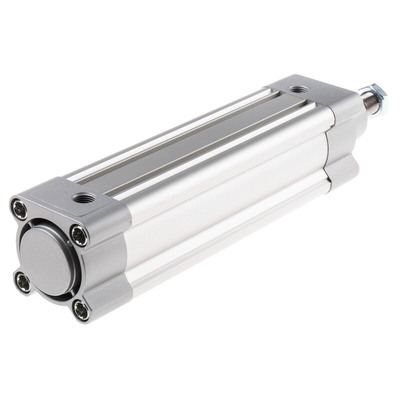

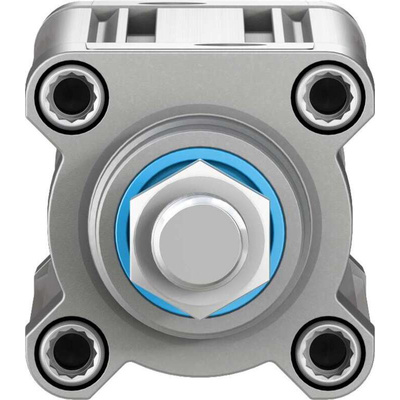

DSBC-50-150-PPSA-N3, Festo Pneumatic Piston Rod Cylinder - 2102632, 50mm Bore, 150mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, 0.4 to 12 Bar Operating Pressure Range, 327.8mm Length - DSBC-50-150-PPSA-N3

Want to keep your industrial processes in line? Trust this pneumatic piston rod cylinder from Festo to achieve precise positioning. It's a double-acting unit that takes in compressed air at both ends to create linear motion and accurately stop, eject or place objects. Thanks to a 150mm stroke, you can count on it for repetitive tasks and applications that need accuracy. As the cylinder tips the scales at just 1.2kg, it adds little strain to your assembly. The die-cast aluminium barrel is rust-resistant, meaning you can confidently use it in damp or humid conditions.

Features & Benefits

• Double-ended cushioning absorbs impacts to prevent damage
• Flexible TPE-U(PU) seals keep the cylinder airtight for optimal performance
• Works like a charm in a wide temperature range between -20°C and +80°C

Applications

• Automated factory systems
• Railway applications
• Industrial vehicles

How do I install this pneumatic piston rod cylinder?

Installing the unit's a breeze – just screw it to a compatible fitting using the standard G1/4 thread, adding a bracket if necessary to support it.

What position can I mount this pneumatic piston rod cylinder in?

You can mount this flexible component in any position to best suit your setup.
