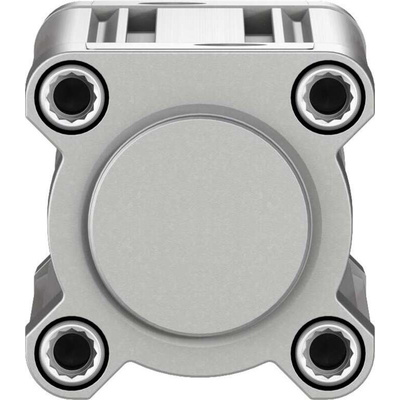

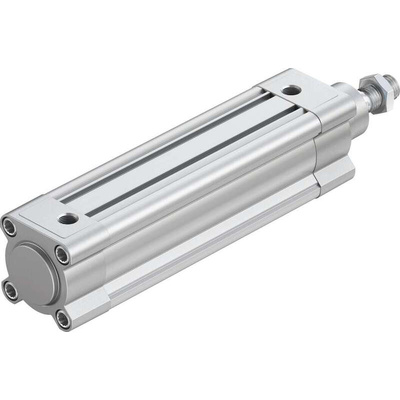

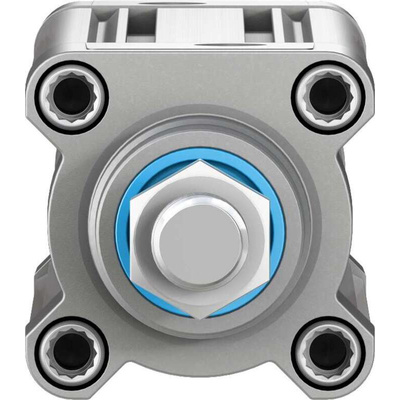

DSBC-50-150-PPVA-N3, Festo Pneumatic Piston Rod Cylinder - 2098974, 50mm Bore, 150mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, 0.4 to 12 Bar Operating Pressure Range, 327.8mm Length - DSBC-50-150-PPVA-N3

To make sure your applications deliver tip-top performance, keep them in line with this pneumatic piston rod cylinder from Festo. It produces the linear motion needed to stop, position or eject objects efficiently. Thanks to its double-acting design, which uses compressed air at both ends to advance and retract the piston, you can count on precision control. There's cushioning at both ends to absorb impacts and ensure a long lifespan. This is also self-adjusting, so you don't have to lift a finger to calculate or set it, even if your load changes.

Features & Benefits

• Weighs just 1.2kg, putting minimal strain on your installation
• G1/4 port connection matches standard fittings for fuss-free assembly
• Operating range between 0.4 and 12 bar handles low-pressure and high-pressure systems

Applications

• Assembly and packaging lines
• Automatic access controls
• Offshore operations
• Railway systems

Can I use this pneumatic piston rod cylinder with sensing equipment?

Yes, you can fit a proximity sensor in the slots along the barrel to improve the accuracy of your equipment even more.

What's the stroke length of this pneumatic piston rod cylinder?

The unit has a 150mm stroke length, making it a good match for repetitive tasks where precision is crucial.
