DRRD-16-180-FH-PA, Festo DRRD Series 8 bar Double Action Pneumatic Rotary Actuator, 180° Rotary Angle

DRRD Twin Piston Rotary Actuators

Festo DRRD series twin-piston rotary actuators feature a rack and pinion principle with a very high bearing load capacity. The compact design of the DRRD series allows various configurations as a suitable solution for different applications.

Quarter turn actuators are suitable for automating butterfly valves, ball valves and air dampers. They are also suitable for water/wastewater, beverage, pharmaceutical and process automation.

Features and Benefits

Torque range: 1.6 Nm to 112 Nm
Double acting
Swivel angle: 180°
High bearing load capacity
High accuracy in end positions
Low backlash
IP65 design

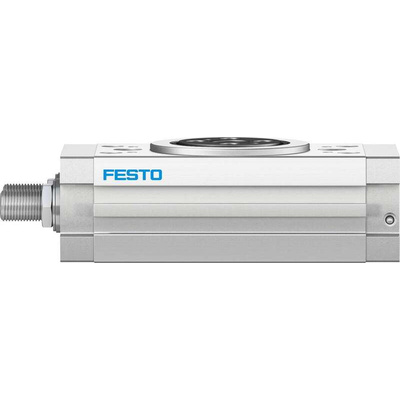

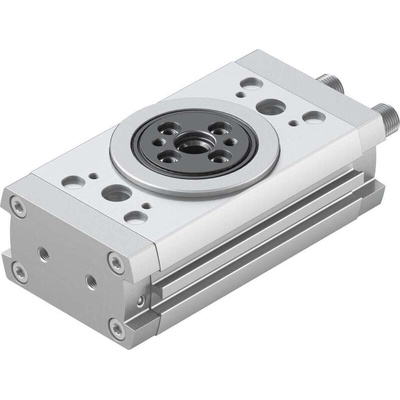

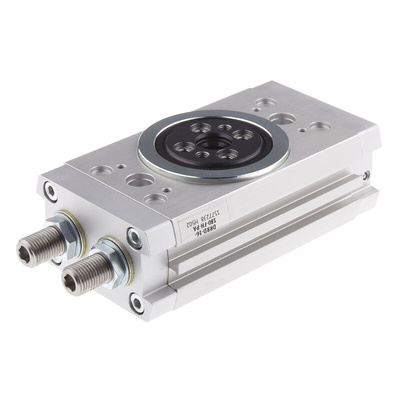

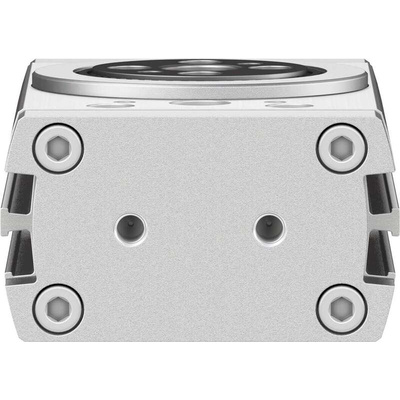

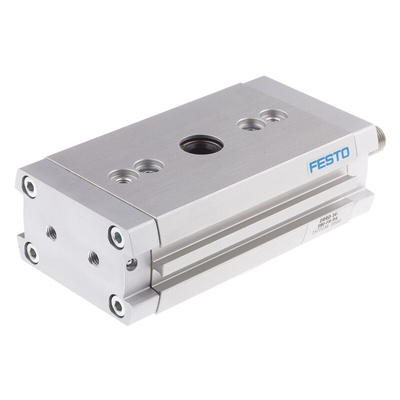

Festo Pneumatic Rotary Actuator, Elastic Cushioning, M5 Port Connection - DRRD-16-180-FH-PA

Rotate items in your system with this size 16 double-acting pneumatic rotary actuator from Festo. Its 180° swivel makes it a versatile choice for repeated clamping, transferring parts and controlling valves. Thanks to its high bearing load capacity of up to 1500N, you can use it in heavy-duty equipment. Thanks to a high repetition accuracy of ±0.05°, you can be sure of achieving the same results every time. At each end of the unit, you'll find an elastic cushioning ring that prevents against impact damage and supports a long service life.

Features & Benefits

• Through-hole mounting style for straightforward installation in your system
• Wide operating temperature range between -10°C and +60°C for use in demanding environments
• IP65-rated, meaning it's dustproof and can withstand water jets, so suitable for use in contaminated conditions

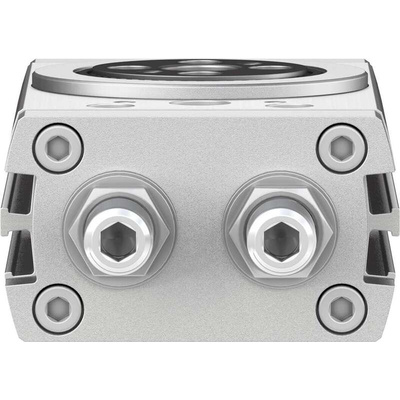

• Standard M5 connection for wide compatibility with existing equipment

Applications

• Manufacturing machinery
• Factory automation systems
• Packaging equipment

What proximity sensors can I pair with this product?

You can pair either Festo's SME series proximity sensor (121-5824) or the SMT series model (250-2714) with this device to prevent impact damage in your system.
