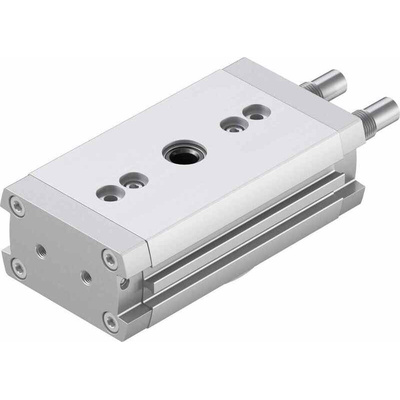

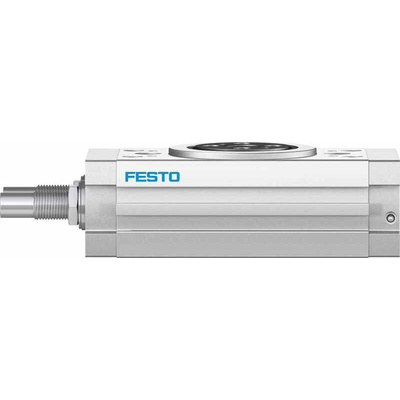

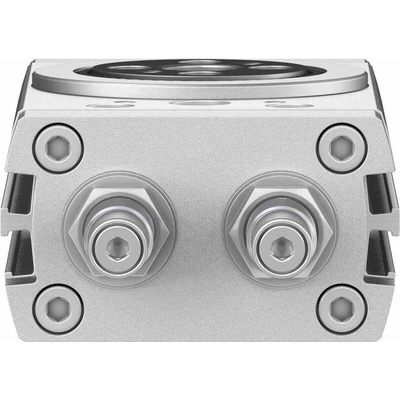

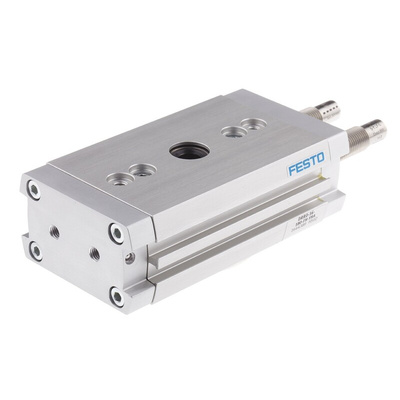

DRRD-16-180-FH-Y9A, Festo DRRD Series 10 bar Double Action Pneumatic Rotary Actuator, 180° Rotary Angle, 16mm Bore

Festo Double Acting Rotary Actuator, 180° Swivel - DRRD Series - DRRD-16-180-FH-Y9A

To achieve a hassle-free turning or twisting motion in your automation system, turn to this semi-rotary actuator from Festo. It swivels up to 180° for all-around flexibility and can handle very heavy loads. Rack and pinion-based movement ensures low backlash and good dynamic response. A high-mass moment of inertia provides improved accuracy and productivity. Rated IP65, this unit can handle washdowns and is well-protected from dust and other particles. As part of Festo's comprehensive range of pneumatic drives, the actuator is designed and tested to deliver superior efficiency.

• Air-cushioning type
• Force of 1.6 Nm at 7 bar
• Maximum operating and input pressure of 10 bar
• M5 port connection
• Size of 16 mm
• Weight of 650 g
• Cushioning angle of 43°
• Lubricated operation possible
• Anodised wrought aluminium alloy material for compactness and durability
• Operating temperature range of -10°C to +60°C

Range Information

• Festo's DRRD series is a core product range consisting of twin-piston semi-rotary drives
• The splash-proof design has an IP65 rating for resistance to dust and water
• Available in a wide choice of variants based on cushioning action, shaft position and placement of sensors
• The series offers high load capacity and high moment of inertia even at small sizes, improving equipment efficiency
