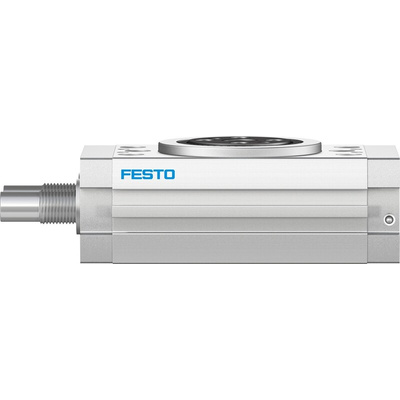

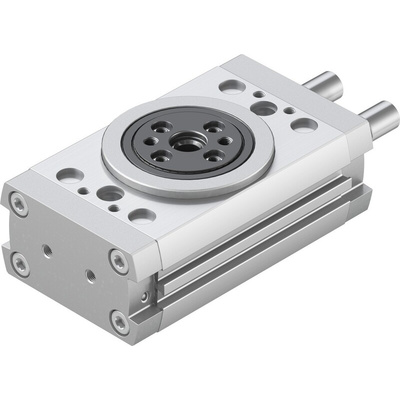

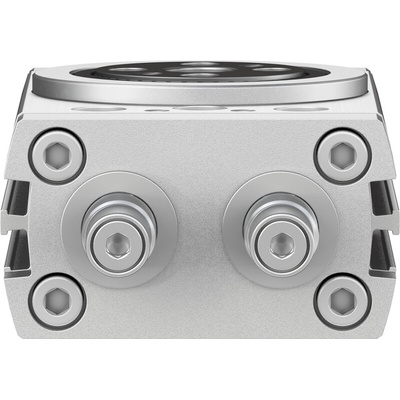

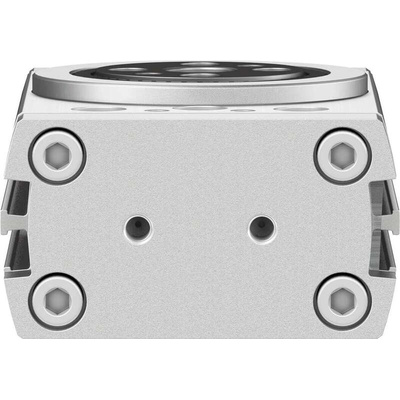

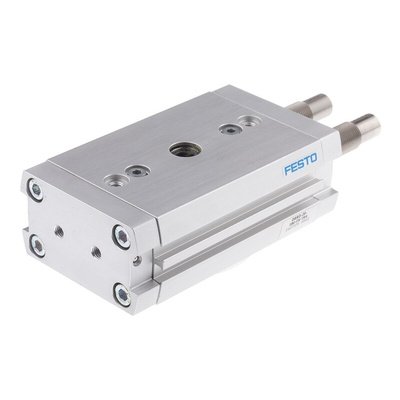

DRRD-20-180-FH-Y9A, Festo DRRD Series 10 bar Double Action Pneumatic Rotary Actuator, 180° Rotary Angle

Festo Double-Acting Rotary Actuator, 180° Swivel - DRRD Series - DRRD-20-180-FH-Y9A

Use this double-acting rotary actuator from Festo for any system that transforms energy into rotational motion. It has a rack-and-pinion setup that's designed to automatically open and close valves in compressed-air applications. The actuator's compact design makes it suitable for multiple configurations. Its shaft is made from heat-treated steel for strength and durability. A high maximum operating pressure and load-bearing capacity mean that it can handle demanding applications. It's commonly used for water treatment, food and beverage equipment and in the pharmaceutical industry.

• Air cushioning type
• Force at 7 bar of 2.4 Nm at 6 bar
• Maximum input pressure of 10 bar
• Maximum operating pressure of 10 bar
• M5 port connection
• Rotary angle of 180°
• Standard size type
• Weight of 883 g

Range Information

• The DRRD series is Festo's range of reliable semi-rotary drives with twin pistons
• The pistons have a high load-bearing capacity and offer reliable accuracy in the end positions
• Their ingress protection rating of IP65 means the products in this range are splash-proof and dust-resistant for improved safety and reliability
• A wide range of different mounting options is available
