DRRD-40-180-FH-PA, Festo DRRD Series 8 bar Double Action Pneumatic Rotary Actuator, 180° Rotary Angle

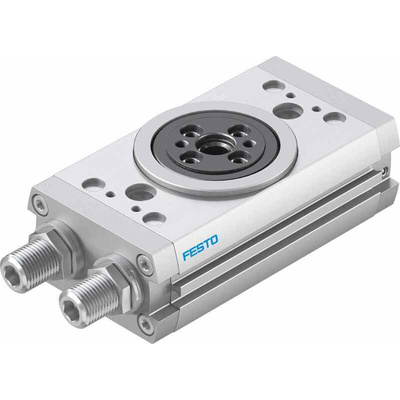

Festo Double-action Pneumatic Rotary Actuator, 40 mm - DRRD series - DRRD-40-180-FH-PA

Achieve high speeds and improve the productivity of your factory automation systems with this double-action rotary actuator from Festo. Its rack and pinion mechanism offers greater torque in a compact package, saving space and energy in modular systems. Superior end-position accuracy means it's a reliable choice in material handling and assembly operations. Flexible cushioning at both end positions ensures minimal backlash, so there's less damage due to wear.
This component offers a variety of mounting options, making it simple to design your systems efficiently. It has an ingress protection (IP) rating of 65, meaning it's protected against dust and pressure from water jets. This helps it withstand washdowns, allowing for easier maintenance.

• Double-acting actuator that's suitable for high-speed and high-torque applications
• Elastic cushioning type that reduces impact forces at lower operating speeds when the piston reaches the end of the cylinder
• Compact size of 40 mm to save room in areas where space is limited
• Swivel angle setting range of +10° to -100° on both sides for greater versatility and precision
• Operating pressure range of 3 bar to 8 bar for use in a range of applications
