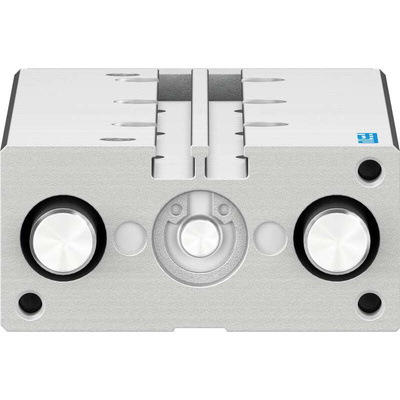

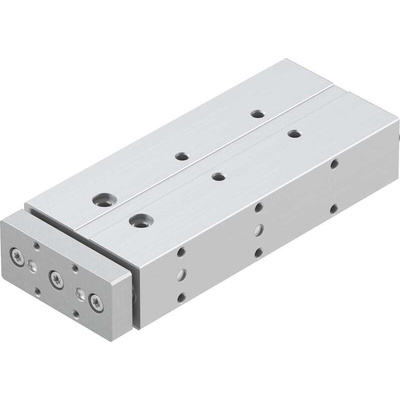

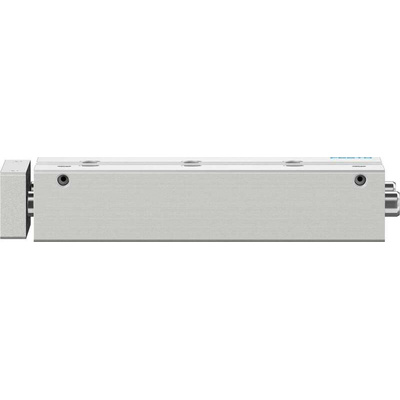

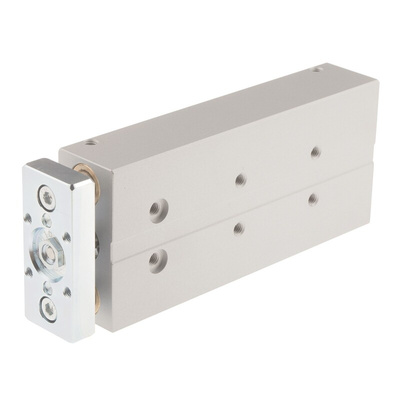

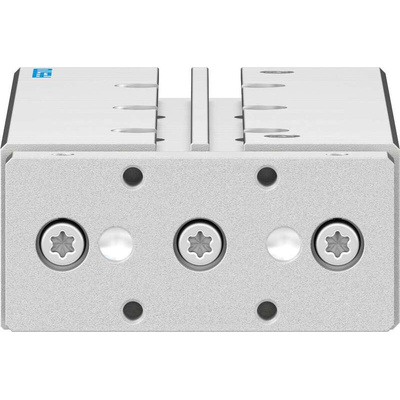

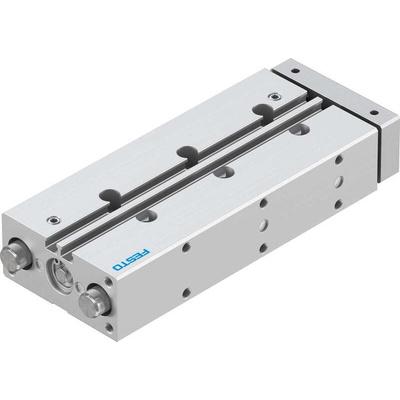

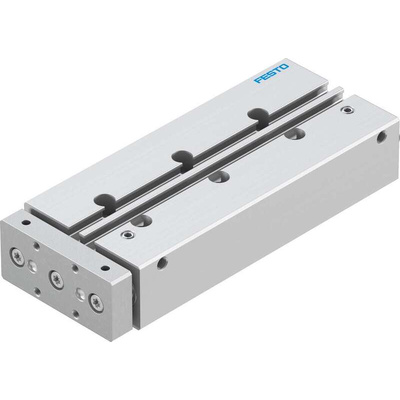

DFM-12-100-P-A-GF, Festo Pneumatic Guided Cylinder - 170831, 12mm Bore, 100mm Stroke, DFM Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Guided Cylinder, 12mm Bore, M5 Port Connection - DFM-12-100-P-A-GF

Looking for a specialised device to move heavy objects through your material handling operation? Upgrade your system in a trice with this pneumatic guided cylinder from Festo. It comes complete with the drive and guide inside its housing, for ease of use. As the unit delivers up to 68N of force on the outstroke at 6 bar, it's just the job for applications such as heavy-duty push-pull, clamping and holding systems. A wide operating pressure range of 2 to 10 bar makes it a versatile addition to your automated setup.

Features & Benefits

• Handles a wide operating temperature range between -20°C and +80°C
• Flexible cushioning rings at each end minimise impact damage and ensure a long service life
• NBR seals stop debris from getting inside, to protect your setup from corrosion
• Standard M5 pneumatic connection for quick installation in your existing system

Applications

• Manufacturing facilities
• Packaging systems
• Process automation

Can I add a proximity sensor to this cylinder?

Yes, you can pair SMT (121-5836) and SDBT proximity sensors (259-5717) with this component if you want to achieve precision positioning in your automated system.
